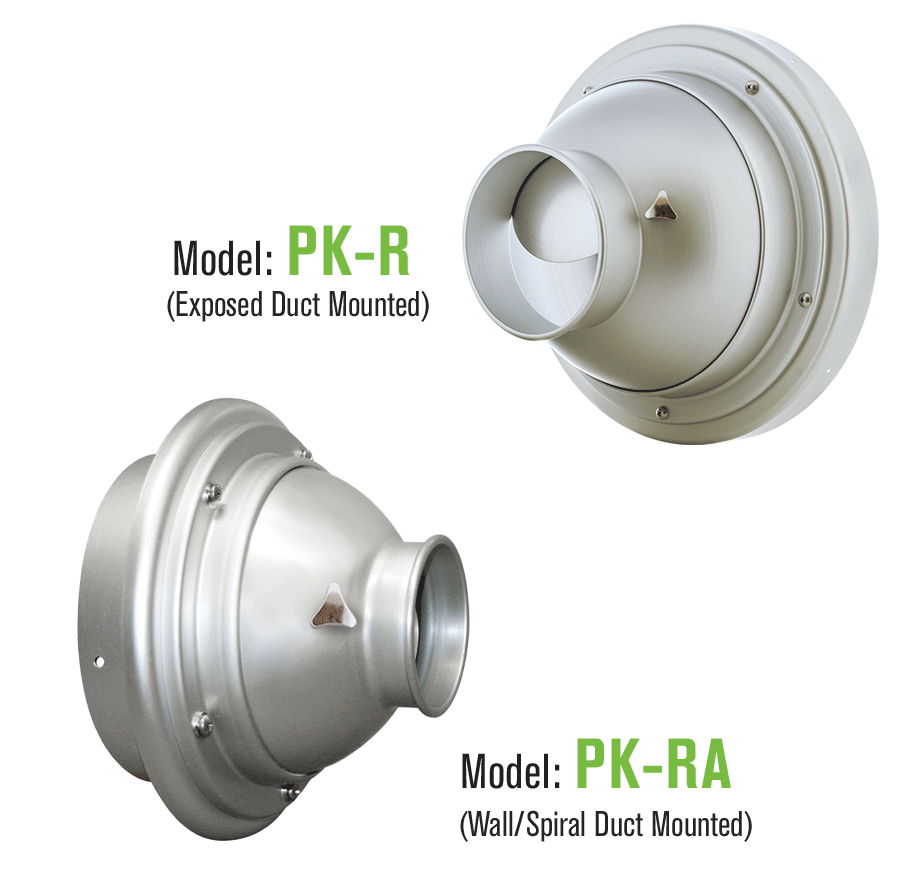

Model PK-R & PK-RA
SpotDiffuser with Round Duct Adapter

Model PK-R SpotDiffuser

Seiho's Model PK-R/PK-RA Aluminum SpotDiffuser offers excellent architectural styling for directional control in supply applications. The PK-R designed specifically for mounting to round (spiral) sheet metal duct work, it provides an integral, readily-accessible air flow adjustment. The heavy-gauge anodized, aluminum and stainless steel construction is corrosion-resistant for years of service. The anodized aluminum finish integrates seamlessly with the galvanized sheet metal finish and color.

Material: Aluminum
Finish: Anodized
PK-RA Duct Sizes: 6" 7" 8" 10" 12" 16" 20"
PK-R Duct Sizes: 8" 10" 11" 14" 16" 20" 24"



PK Feature

New Knob Design
Model Sizes PK3-14 are being transitioned from round knobs to triangular knobs. Round knobs will be shipped out until their stock is depleted. If you have any questions regarding this, please contact us through our Contact Us section.

CONSTRUCTION

PK Feature

The SEIHO Model PK-A and PK-AD Air Shower Nozzles are manufactured from heavy-gauge aluminum. The overall heavy-duty construction exceeds industry standards by a wide margin. The multi-directional louver body and all other components are machined to close tolerances from solid aluminum alloys, then bright polished. The flange-to-body gasket consists of two tandem felt strips for a leak-proof seal. These components comprise a unit which provides smooth movement of the louver body when adjusting its direction. The flange mounting gasket is closed-cell neoprene or felt, depending on unit size. A knurled aluminum thumb-operated airflow adjustment knob facilitates control of airflow by regulating the volume out of the exit nozzle with the precision internal damper. The internal damper is under tension by a stainless steel spring for sealing and quiet operation.

AIRFLOW PATTERNS

Smoke Patterns

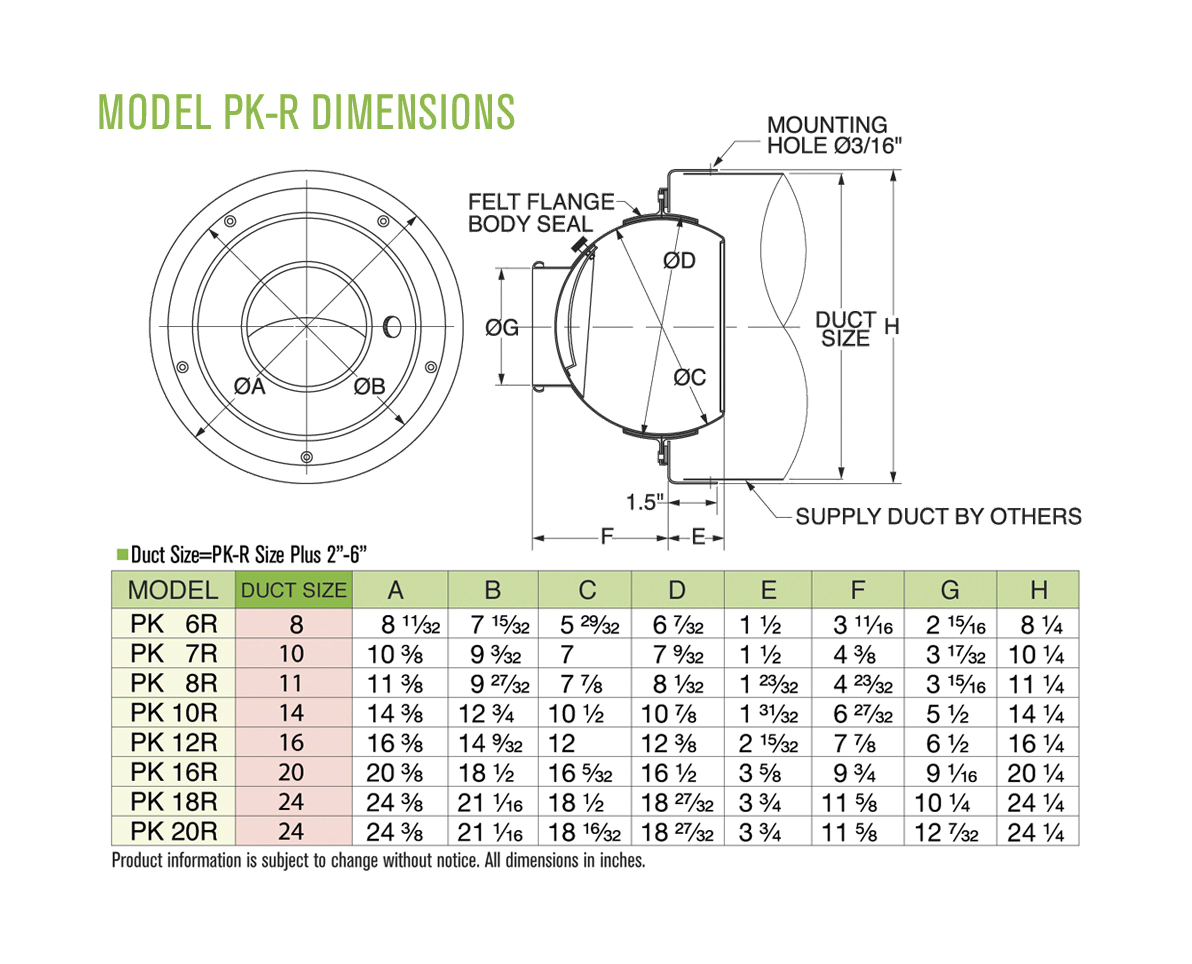

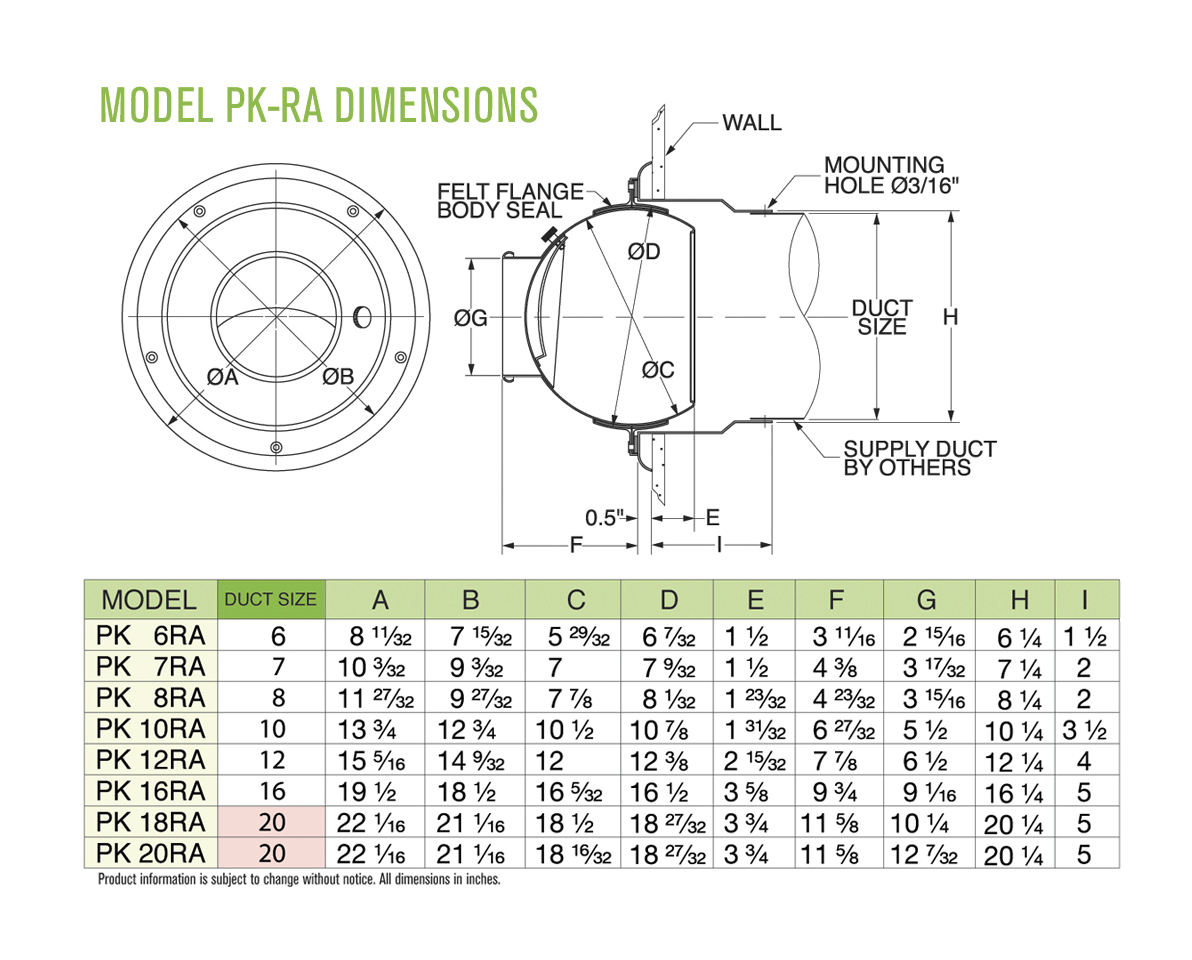

DIMENSIONS

Dimensions Dimensions

DOWNLOAD

Catalog
Submittal Sheet  PK-R  /  PK-R (Metric) /  PK-RA /  PK-RA (Metric)
Performance Data  Inch /  Metric
High Resolution Picture  PK-R /  PK-RA
