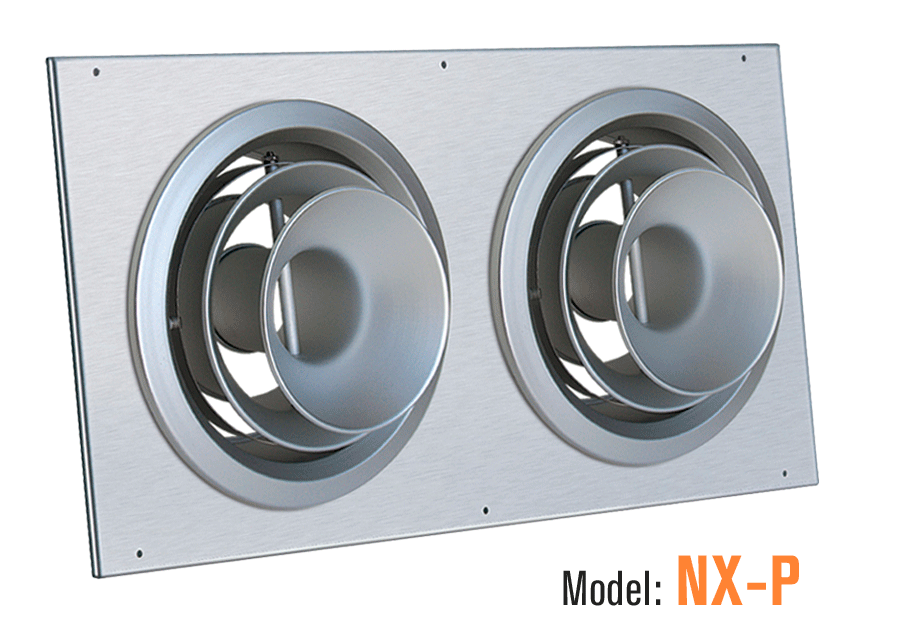

The new NX Reversible TurboNozzle is now available in a panel mounted design. Select from one, two, three, or four NX's per panel. Perfect for retro-fitting an existing air grilles, or for new construction. For wall or ceiling mounting. Construction consists of stainless steel and heavy gauge aluminum. Finishes are clear anodized nozzle with brushed panel. Custom size panels are available.
Made in U.S.A.

Material: TurboNozzle: Aluminum / Plate: Stainless Steel (304)
Finish: TurboNozzle: Clear Anodized / Plate: Brushed

FEATURES

Reversible Center Cones for Narrow or Wide Jet Air Pattern
Infinitely Adjustable 2-Axis Core for Directional Control
High Airflow Capacity
Anodized Aluminum Body and Stainless Steel Construction
Available for Standard Duct Sizes

*Recommended use of (3) No.8 screws through body into duct wall to ensure positive connection in ceiling application.

AIRFLOW SMOKE PATTERNS

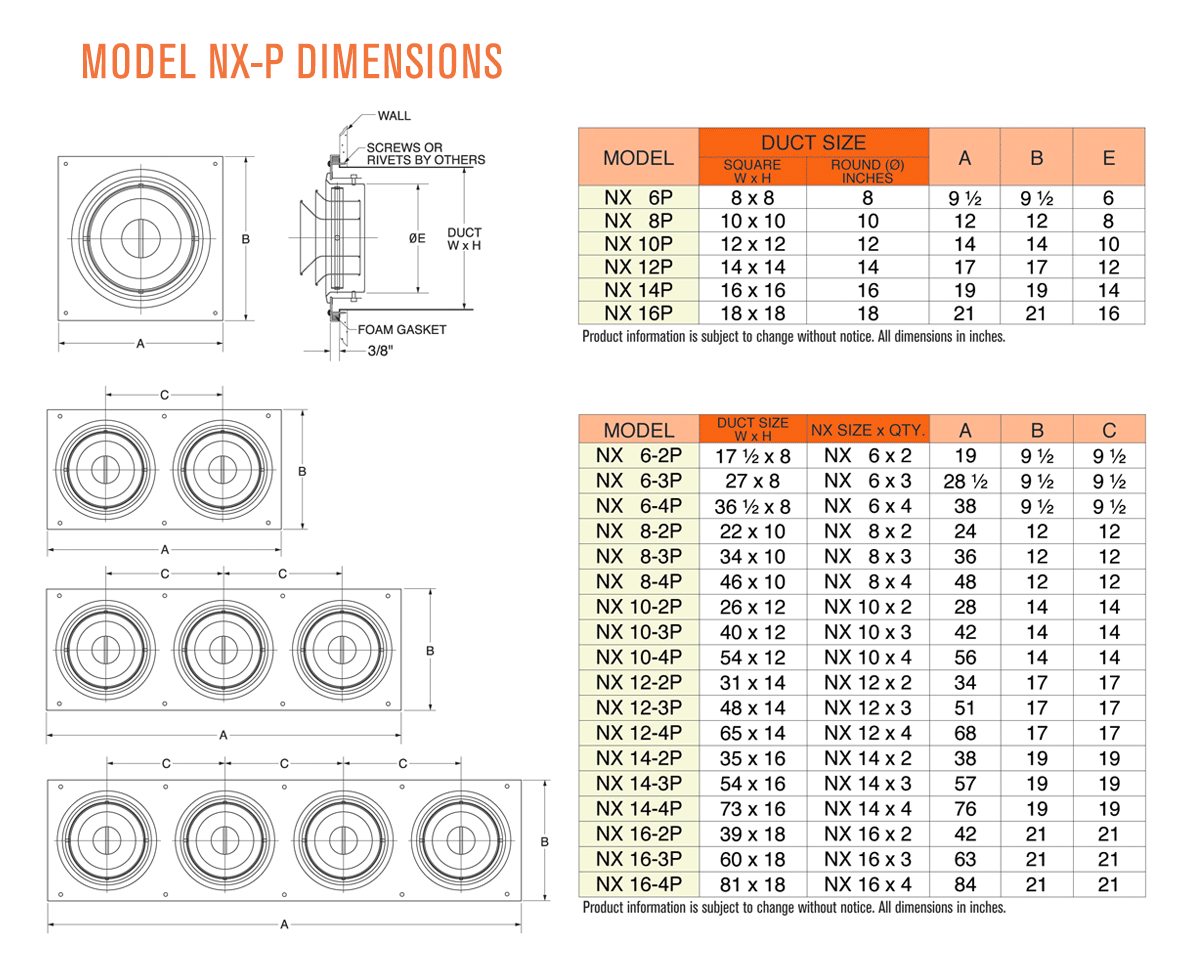

DIMENSIONS

DOWNLOAD

Catalog

Submittal Sheet  Inch /  Metric

Performance Data  Inch /  Metric

Revit Files

High Resolution Picture
