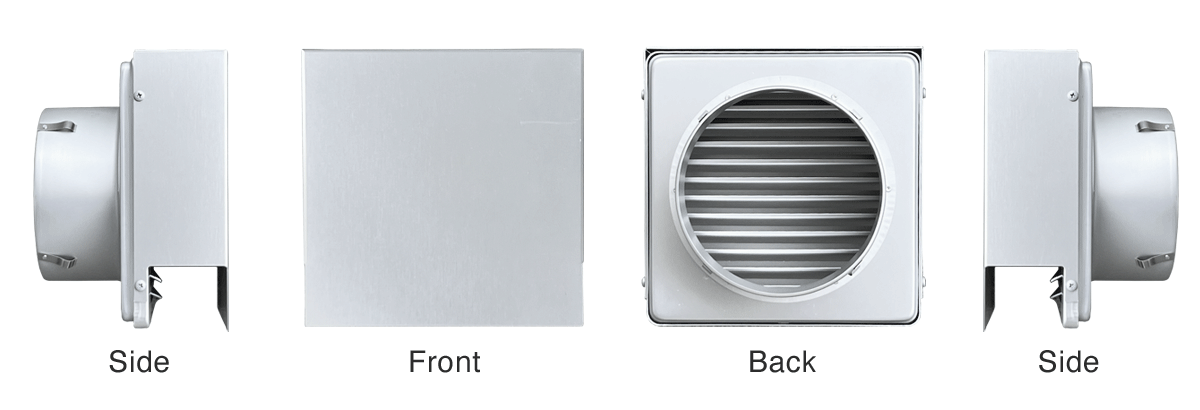

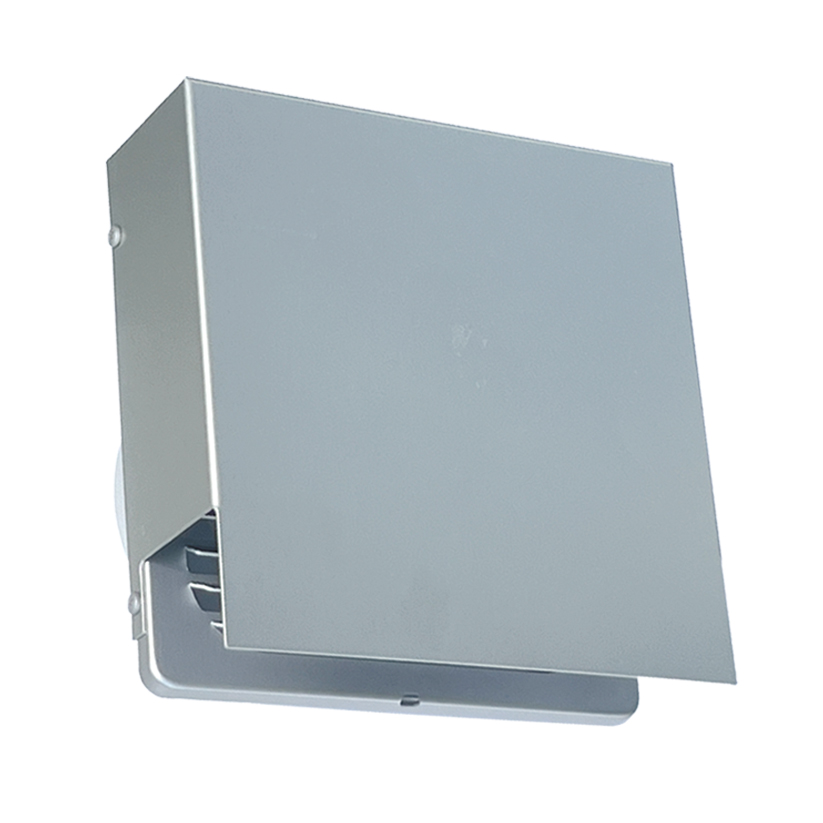

Seiho's square-faced Vent Caps are now available with a slim hood. This model is excellent for exteriors where protection from the elements is required. Insect screens are an option.

Available Mid-April 2025!

*Note
No louver manufacturer warrants their louver to prevent water penetration under all possible circumstances of wind and rain.

Material: Aluminum
Finish: Anodized (Custom Colors Available)
Sizes: 4" & 6"
Optional Screens: 10 Mesh, 3 Mesh (Upon Request)

FEATURES

APPLICATIONS

Fresh Air Intake/Exhaust Outlet and Ventilation for Interior and Exterior Locations.

Homes	Ships	Retail Buildings
Apartments	Gymnasiums	Commercial Buildings
Condominiums	Warehouses	Restautants

VENT CAP SELECTION

1.To determine minimum free area required for vent, divide the required CFM flow by the maximum recommended free area velocity of 750 FPM. Given 125 CFM: Min. free area = 125 CFM/750 FPM = 0.16 sq. ft.

2. From the Dimension table, find the corresponding minimum vent size. Model SXL 10 has 0.19 sq. ft. free area.

3. Verify the static pressure drop through the vent from the Pressure Drop Chart. Velocity of 750 FPM has 0.09 in. w.g. static pressure drop.

FINISH

The standard finish is clear anodized aluminum. Powder coatings in a variety of colors are available upon request at a nominal charge. Please contact our sales department for assistance and detailed ordering information.

DIMENSIONS
