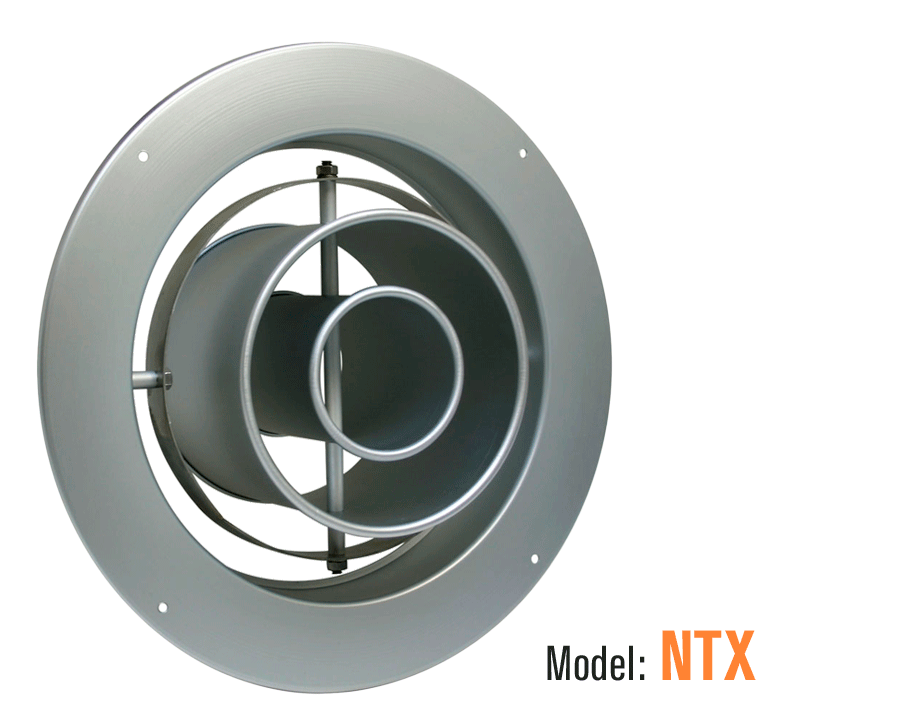

Seiho's Model NTX Surface Mounted TurboNozzle offers excellent architectural styling for directional control in supply applications. Designed specifically for a flush flange mounting to wall and ceiling construction, it provides an integral, readily-accessible, airflow adjustment in its installed position. The NTX differs from the NT in its mounting configuration and the nozzle position. The NTX uses a shallower flange and the nozzle protrudes from the flange. The heavy-gauge anodized, aluminum and stainless steel construction is corrosion-resistant for years of service. The aluminum finish integrates seamlessly with the many architectural finish systems.
Material: Aluminum
Finish: Anodized (Custom Colors Available)
Sizes: 6" 8" 10" 12" 14" 16" 18" 22" 26"
FEATURES
| Surface Mounted |
Long Throw Capability |
| Infinitely Adjustable 2-Axis Core
for Directional Control |
Anodized Aluminum Body and
Stainless Steel Construction |
| Available for Standard Duct Sizes |
Horizontal Throw |
| Long Throw Capability |
Mounting Screw Fastening System |

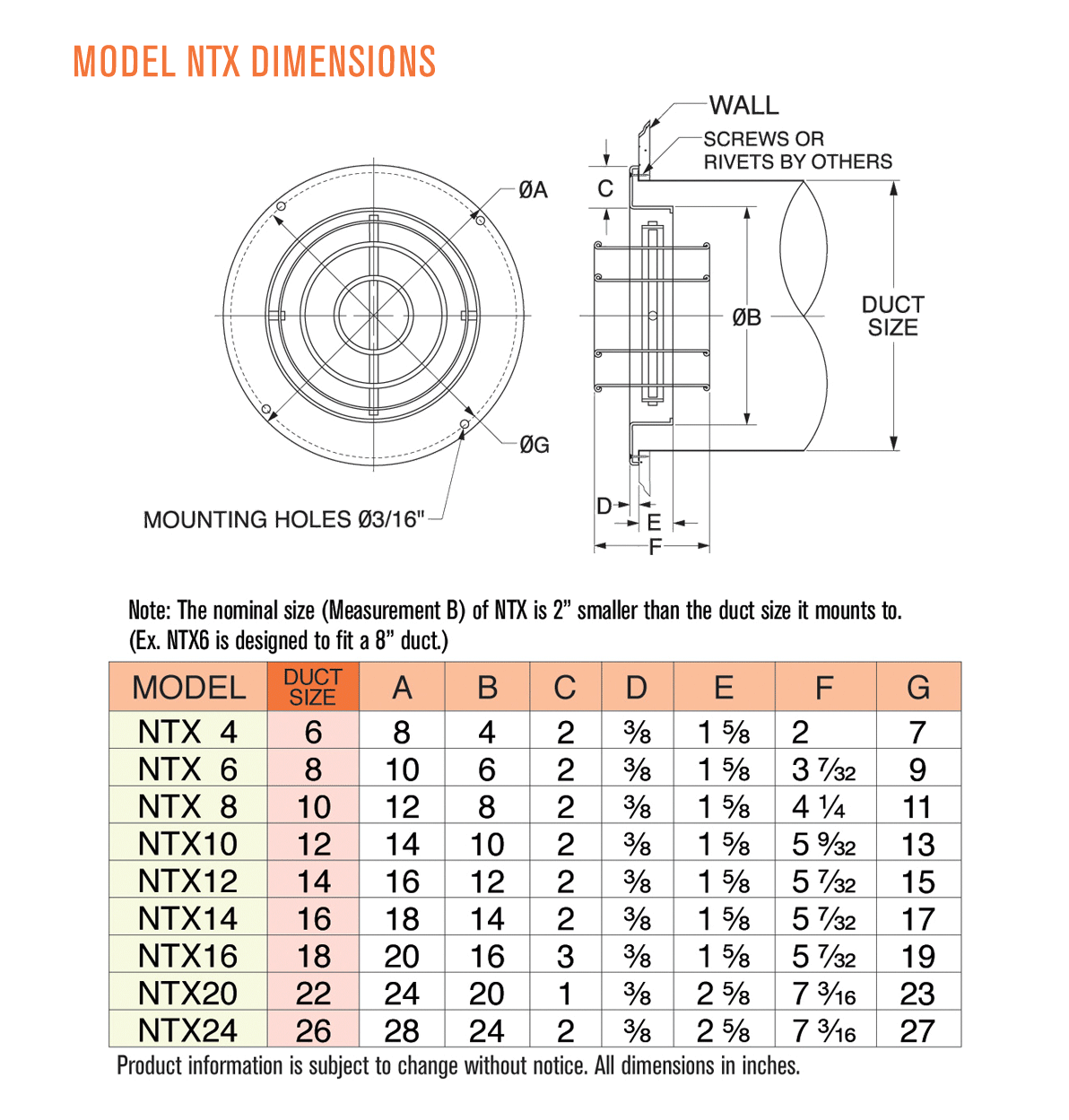

DIMENSIONS
DOWNLOAD
