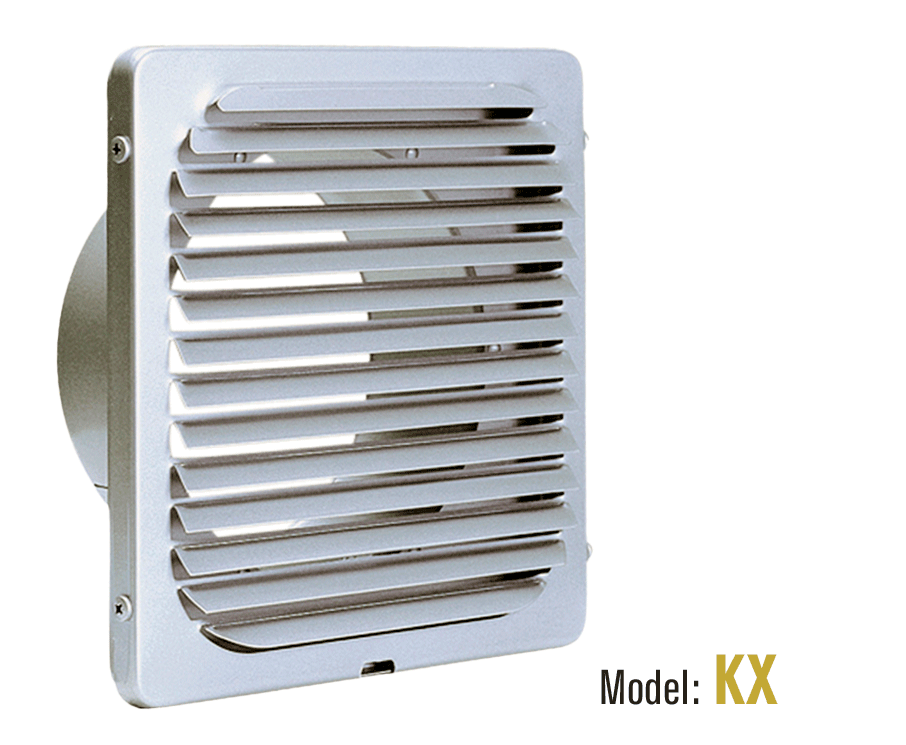

Model KX
Vent Caps
The new KX vent cap is ideal for residential ventilation applications such as storage rooms, attics, basements, as well as bathroom / kictchen exhaust. The clean square design is a perfect match for contemporary and classic building alike. Insect screens can be added as an option.
*Note
No louver manufacturer warrants their louver to prevent water penetration under all possible circumstances of wind and rain.
Material: Aluminum
Finish: Anodized (Custom Colors Available)
Sizes: 3", 4", 5", 6"
Optional Screens: 10 Mesh, 3 Mesh (Upon Request 4"&6" Only)
FEATURES
| Made from Machined Anodized Aluminum. | Water Condensation Drain. |
| Designed for Weather Resistance. | Available with 10 or 3 Mesh Screen (Model KX-N). |
APPLICATIONS
Fresh Air Intake/Exhaust Outlet and Ventilation for Interior and Exterior Locations.
| Homes | Ships | Retail Buildings |
| Apartments | Gymnasiums | Commercial Buildings |
| Condominiums | Warehouses | Restautants |
VENT CAP SELECTION
1.To determine minimum free area required for vent, divide the required CFM flow by the maximum recommended free area velocity of 750 FPM. Given 125 CFM: Min. free area = 125 CFM/750 FPM = 0.16 sq. ft.
2. From the Dimension table, find the corresponding minimum vent size. Model SXL 10 has 0.19 sq. ft. free area.
3. Verify the static pressure drop through the vent from the Pressure Drop Chart. Velocity of 750 FPM has 0.09 in. w.g. static pressure drop.
FINISH
The standard finish is clear anodized aluminum. Powder coatings in a variety of colors are available upon request at a nominal charge. Please contact our sales department for assistance and detailed ordering information.

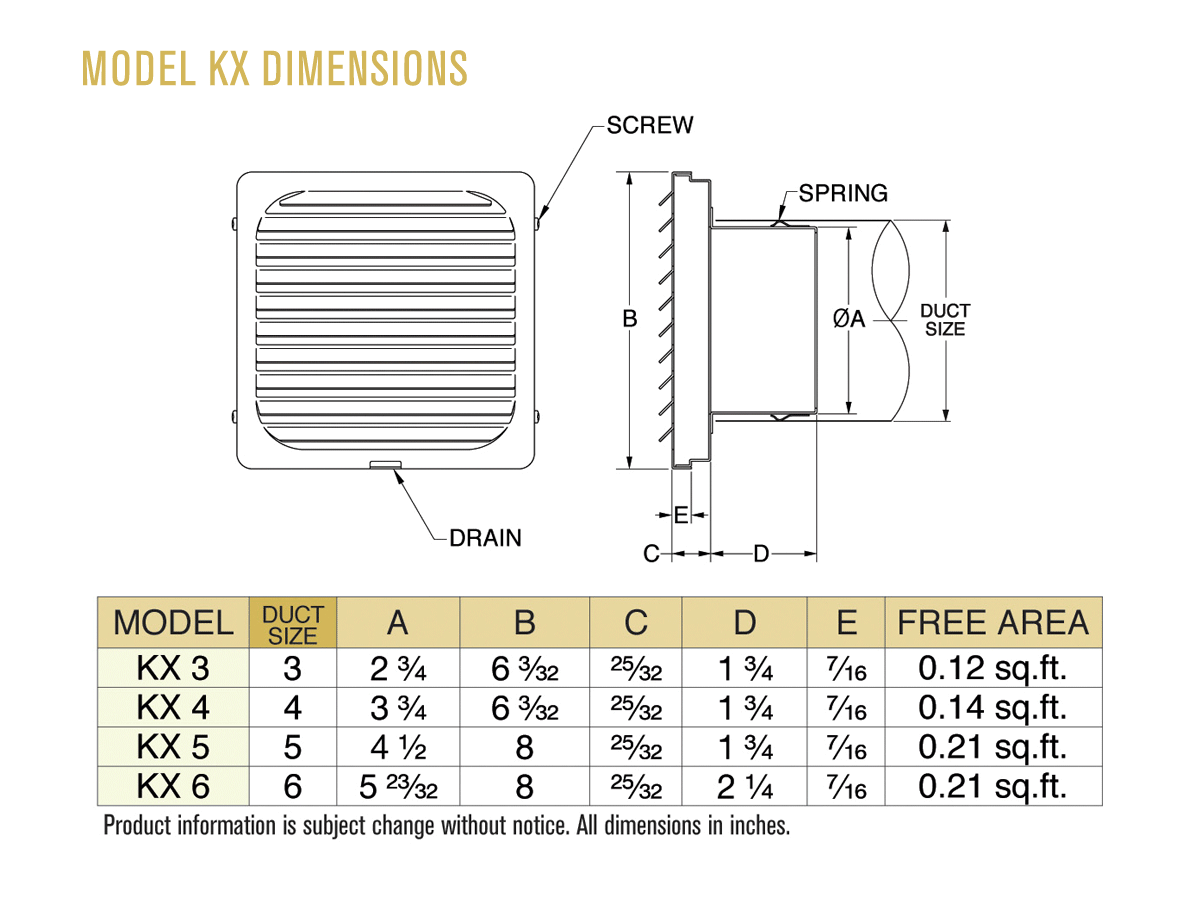

DIMENSIONS
