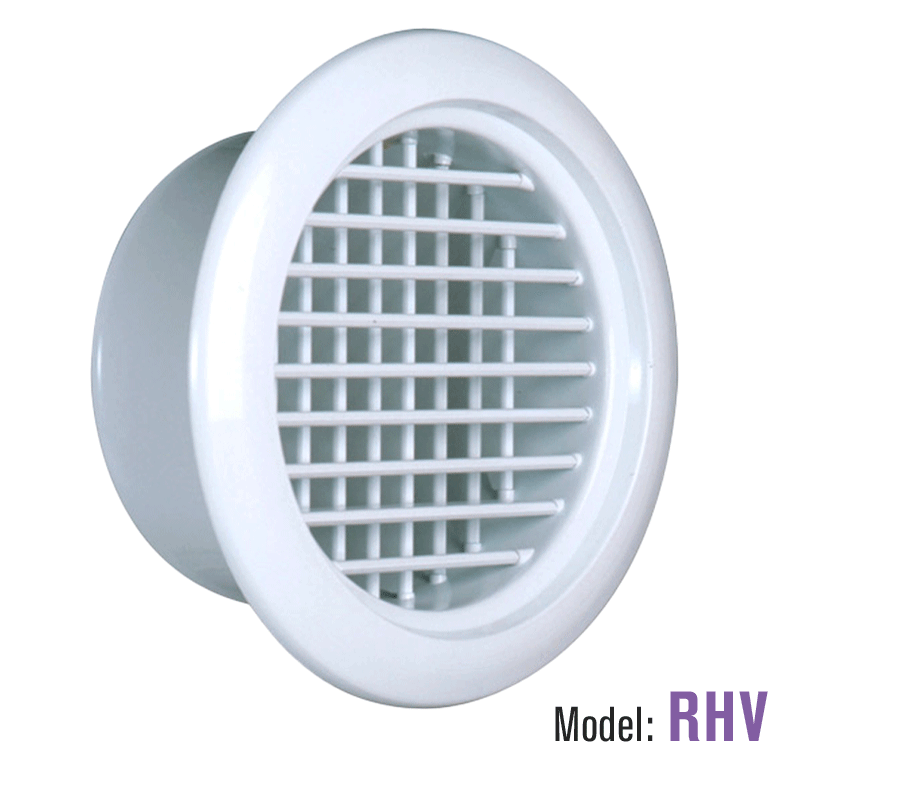

The model RHV Double Deflection Diffuser offers a double deflection design in a round shape. Excellent for ceiling and wall mounting, it can provide wide dispersion or narrow air streams. The individually adjustable blades allow the user to condition four areas simultaneously. The body is one piece aluminum and mounts with the included hidden bracket. Finally a register good looking enough for those special projects!
Material: Heavy-Gauge Aluminum

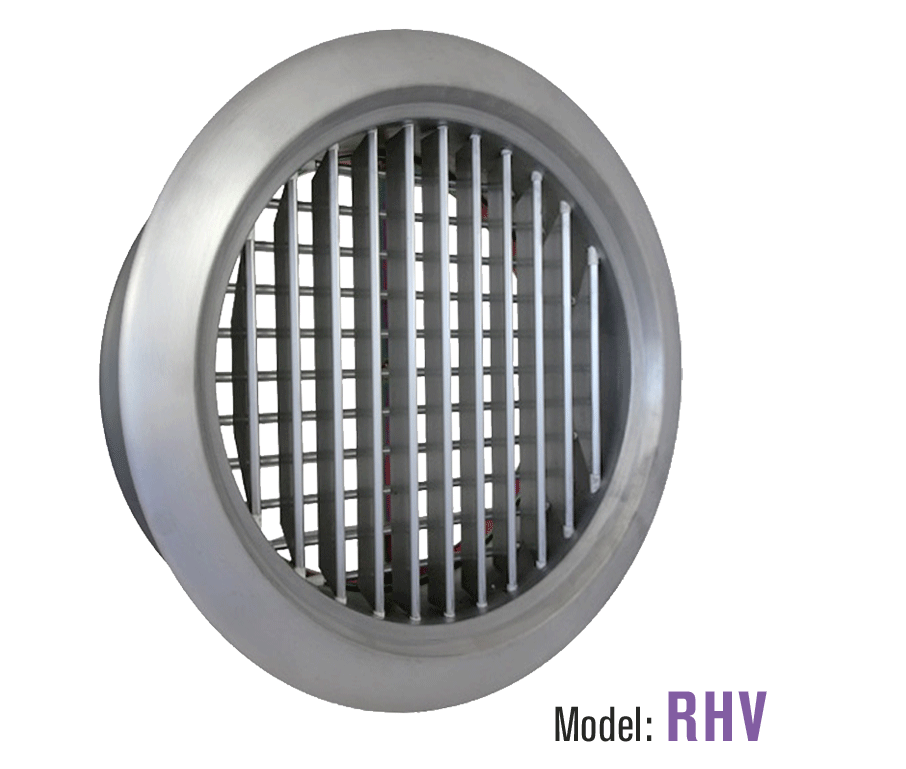

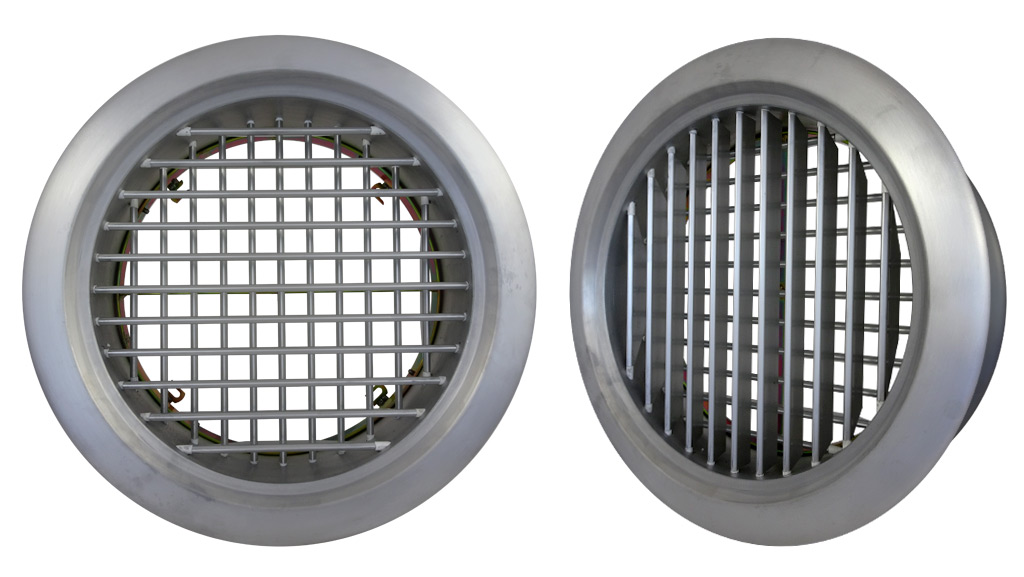

Finish: Gloss White or Mill Finish (Custom Colors Available)

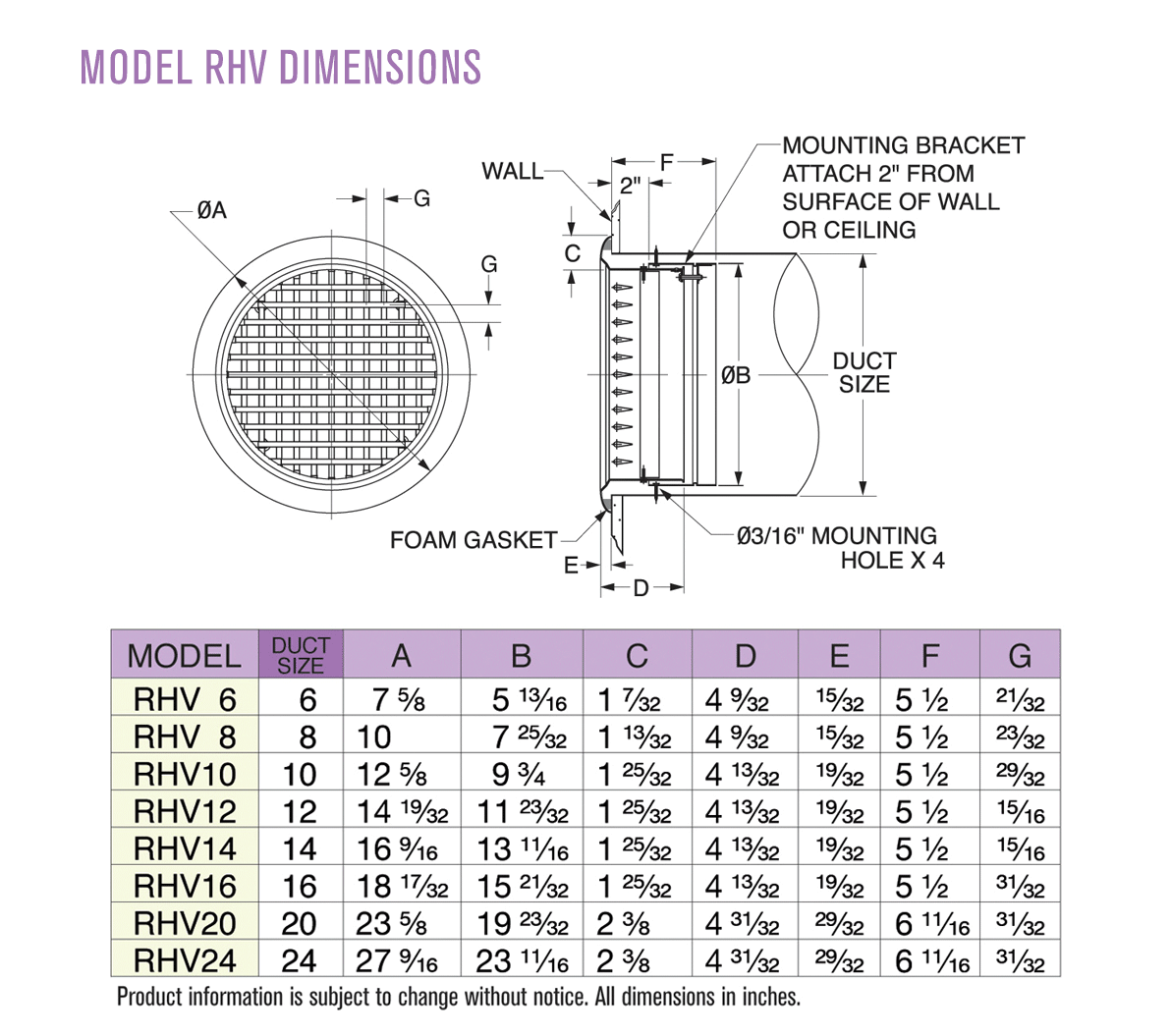

Sizes: 6" 8" 10" 12" 14" 16" 20" 24"
The RHV's front and rear blades are each individually adjustable to provide numerous dispersion patterns from wide dispersion patterns to long throw narrow air streams.
|Long Air Throw Capability
|Wide Dispersion Patterns
|Double Deflection Design
|Concealed Mounting Mechanism
|Available for Standard Duct Sizes
|Heavy Gauge Aluminum Body
|Extruded Aluminum Airfoil Blades

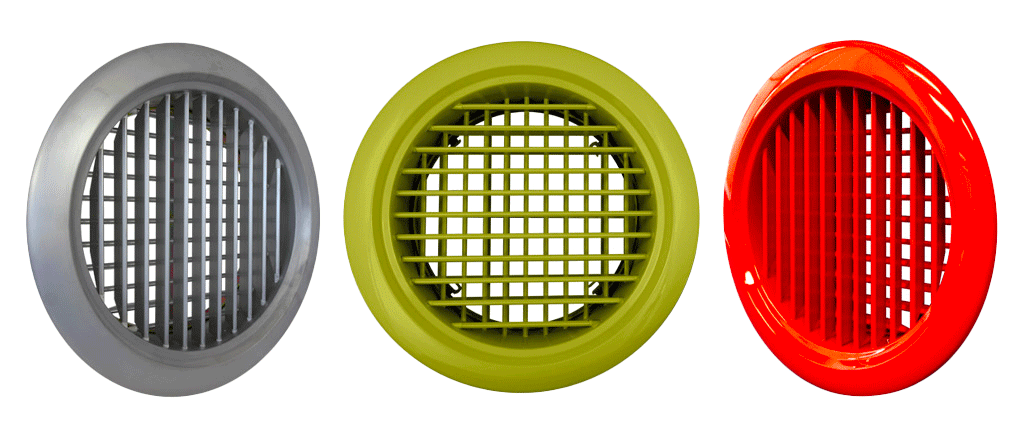

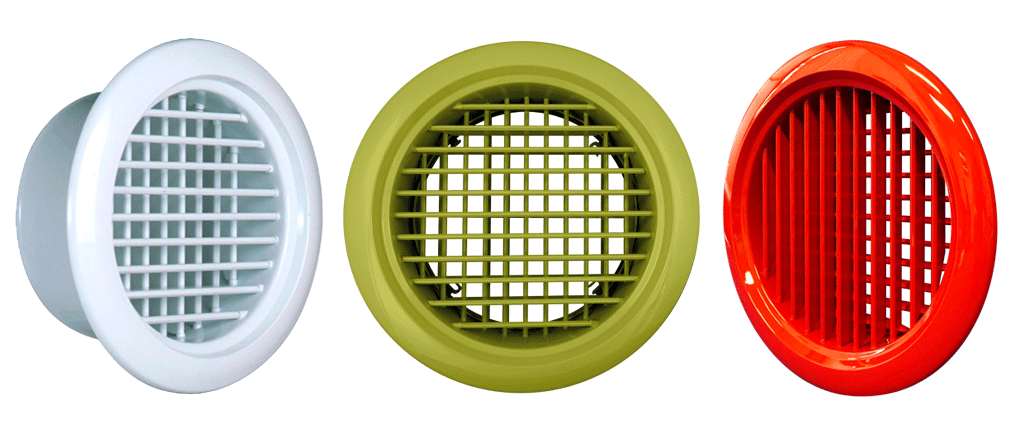

The standard finish is gross white and mill finish. Powder coatings in a variety of colors are available upon request at a nominal charge. Please contact our sales department for assistance and detailed ordering information.
