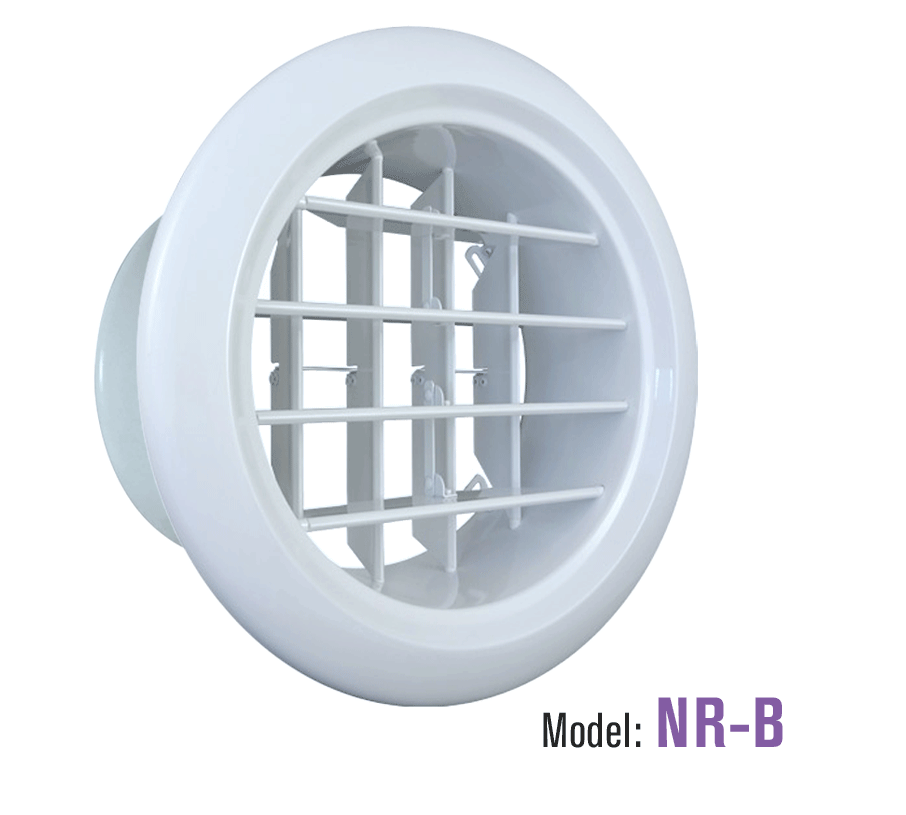

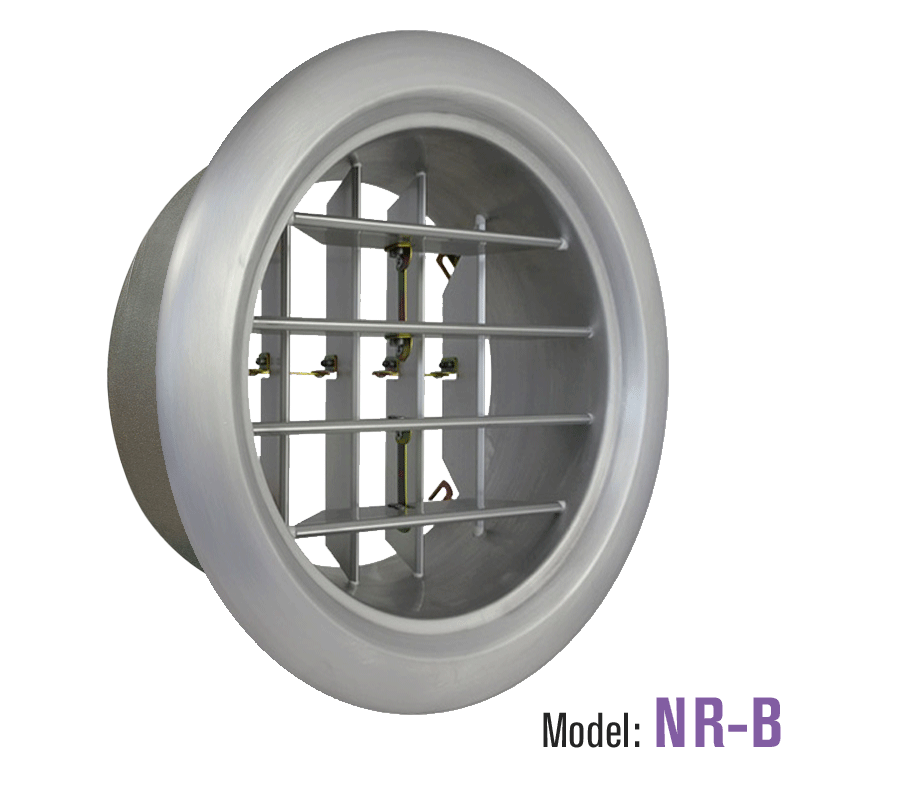

Model NR-B
Round Grille
Seiho's model NR-B utilizes a widely-spaced blade design for high capacity, long throw air flow in a double deflection grille. The linked blades facilitate air direction control. The NR-B can be wall mounted securely with its mounting bracket. Excellent for use where high volume air streams are needed such as airport concourses, hotel lobbies, and convention halls.
Material: Heavy-Gauge Aluminum

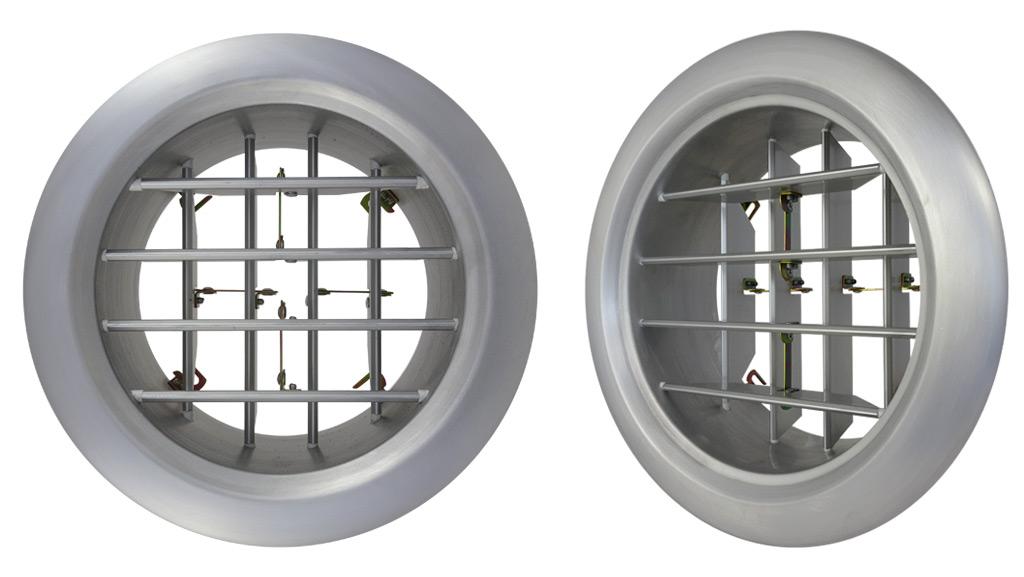

Finish: Gloss White or Mill Finish (Custom Colors Available)
Sizes: 6" 8" 10" 12" 14" 16" 20" 24"
FEATURES
The NR-B's front and rear linked blades are independently adjustable to provide numerous dispersion patterns.
| Contemporary Design | Long Air Throw Capability |
| Wide Dispersion Patterns | Double Deflection Design |
| Concealed Mounting Mechanism | Available for Standard Duct Sizes |
| Heavy Gauge Aluminum Body | Extruded Aluminum Airfoil Blades |
FINISH

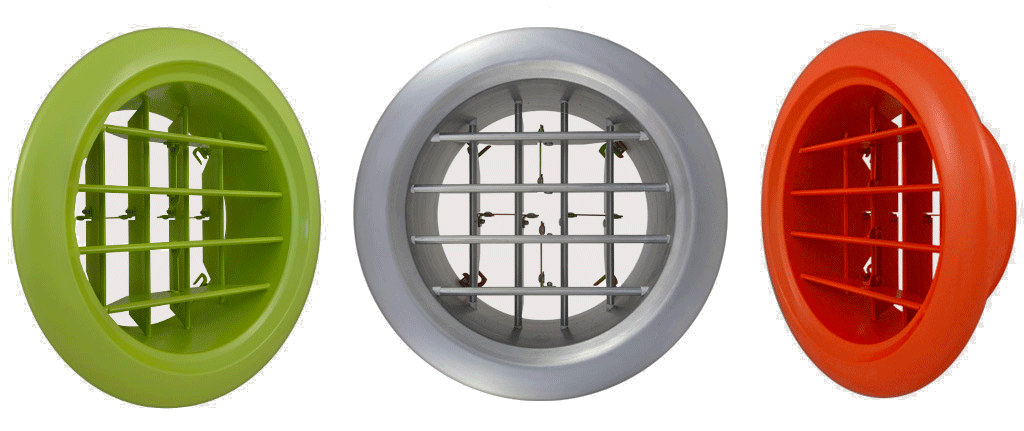

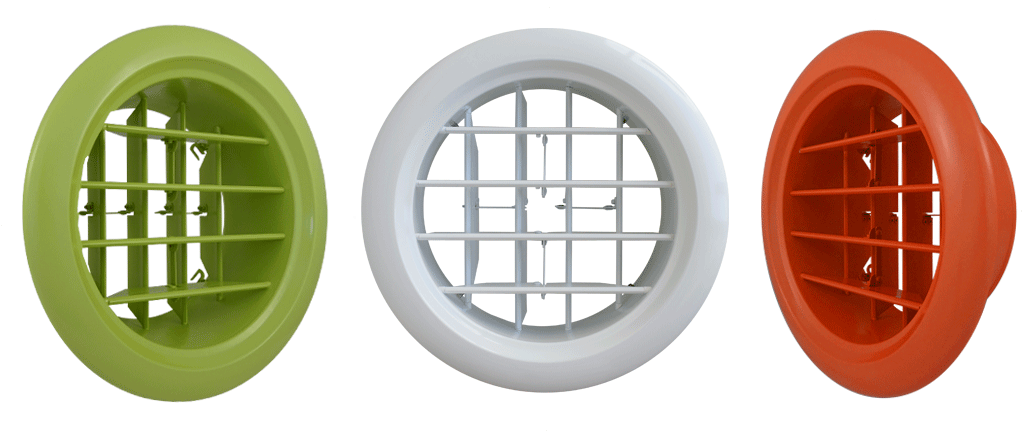

The standard finish is gross white and mill finish. Powder coatings in a variety of colors are available upon request at a nominal charge. Please contact our sales department for assistance and detailed ordering information.

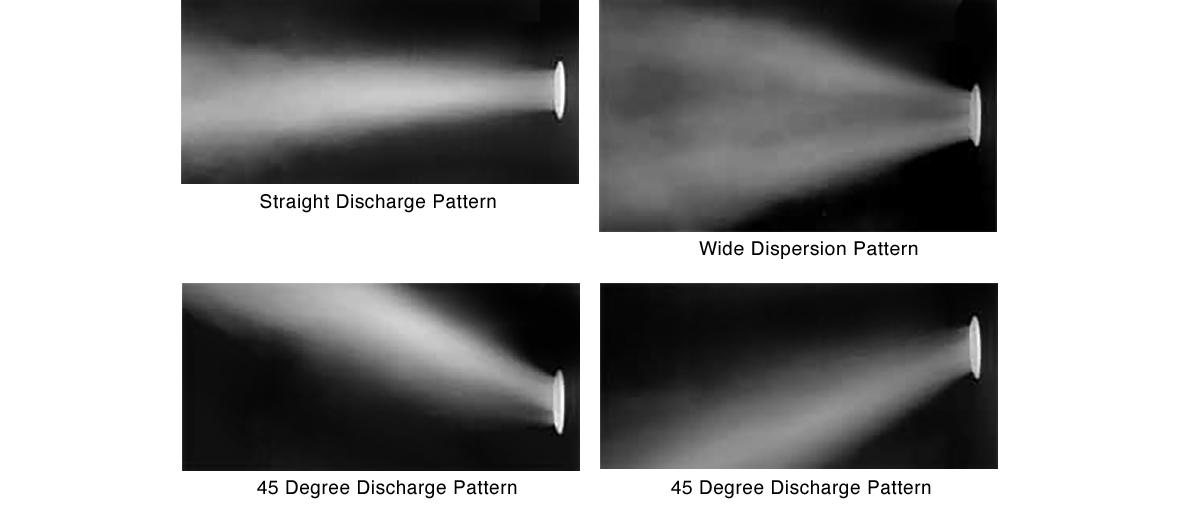

AIRFLOW PATTERNS

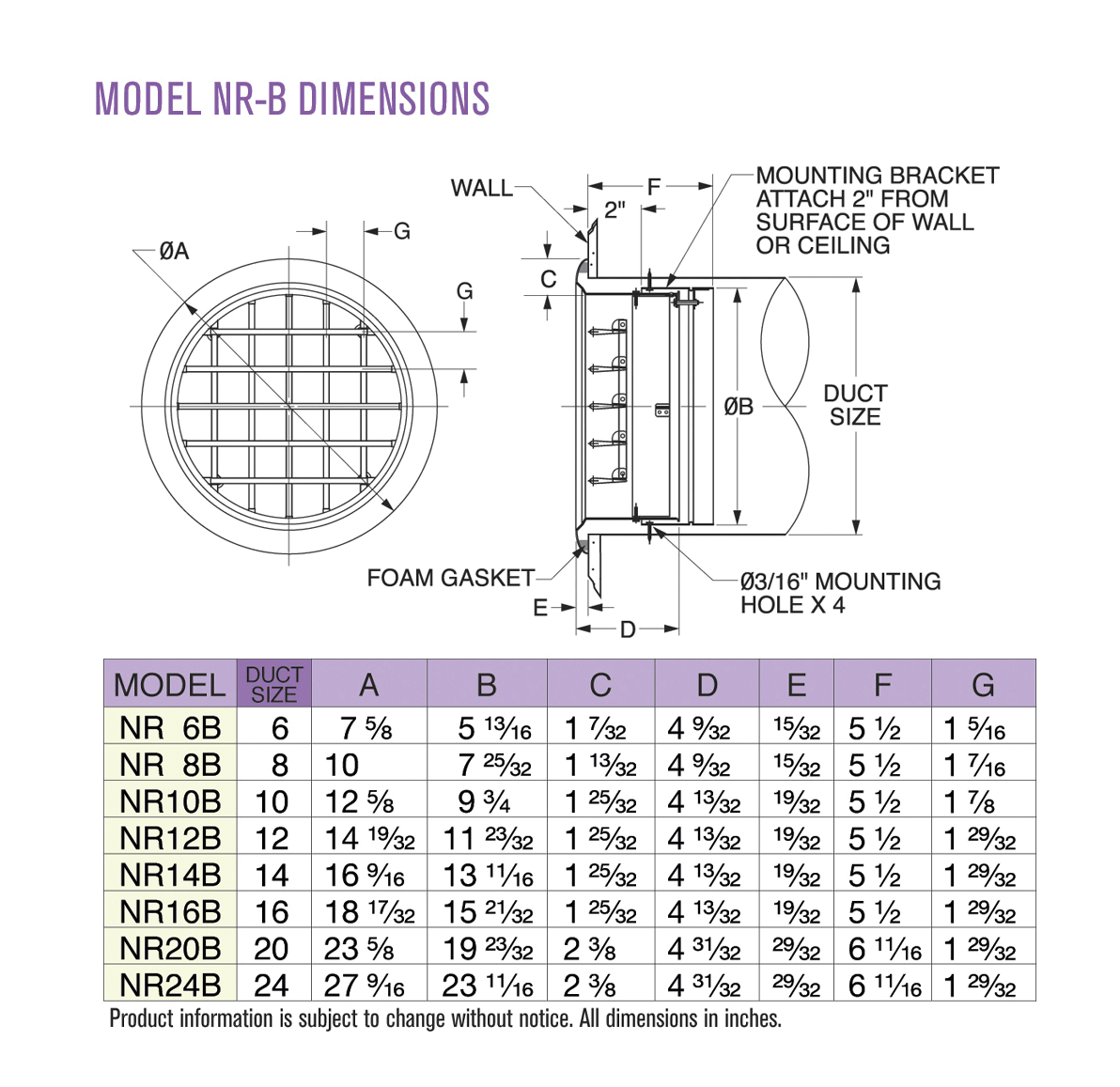

DIMENSIONS
DOWNLOAD
| Catalog |
| Submittal Sheet Inch / Metric |
| Performance Data Inch / Metric |
| Revit Files |
| High Resolution Picture White Finish / Mill FInish |
| Installation Instruction |
