Model NP
TurboNozzle

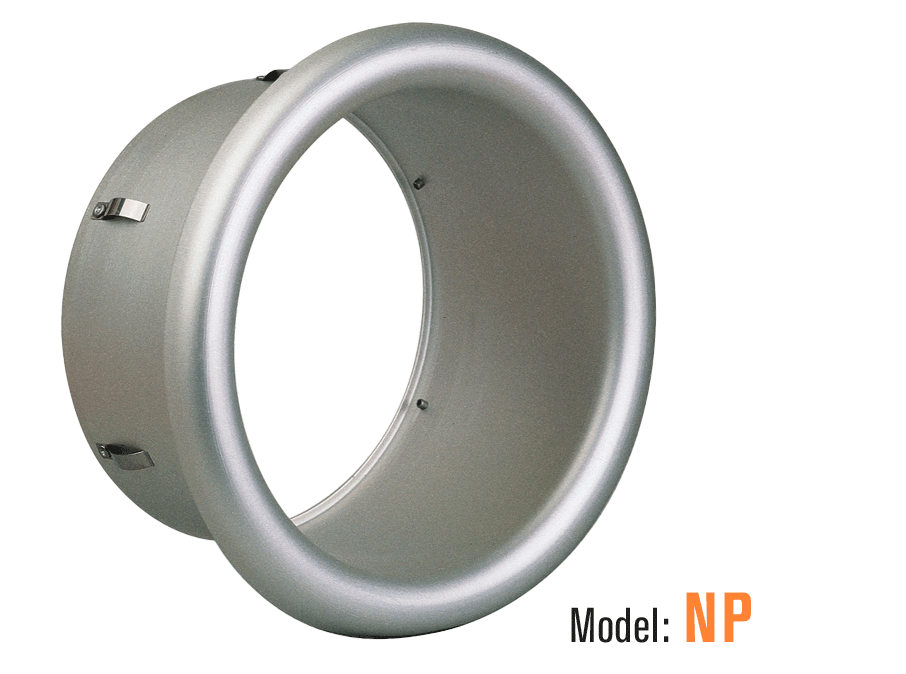

![Model NT TurboNozzle](img/product/np_model.png)
The model NP is similar to the NT, the difference being the lack of air direction control. In an application where a flooding or dumping of conditioned air is required without the need to control it, the NP essentially functions as a finish piece for the system, whether used in exposed ductwork or surface mounted.*
*Note: NT & NP are designed for wall mounting. Screws must be used for ceiling mounting.
Material: Aluminum
Finish: Anodized (Custom Colors Available)
Sizes: 4" 6" 8" 10" 12" 14" 16" 20" 24"
FEATURES
High Airflow Capacity | Long Throw Capability |
Available for Standard Duct Sizes | Anodized Aluminum Body and Stainless Steel Construction |

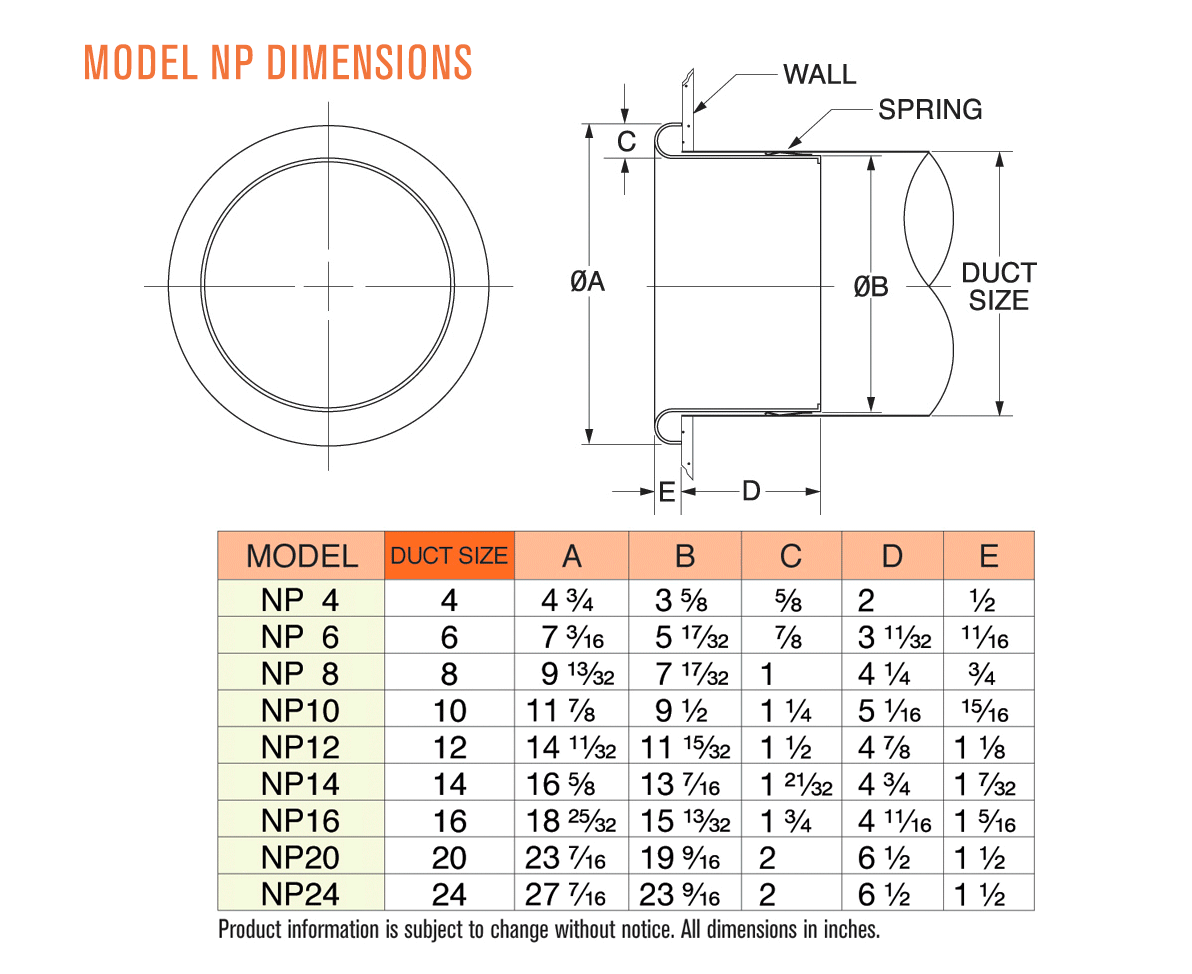

DIMENSIONS
![Dimensions](img/product/np_dim.png)
AIRFLOW PATTERNS
![Smoke Patterns](img/product/np_smoke.png)
DOWNLOAD
Catalog |
Submittal Sheet Inch / Metric |
Performance Data Inch / Metric |
High Resolution Picture |
