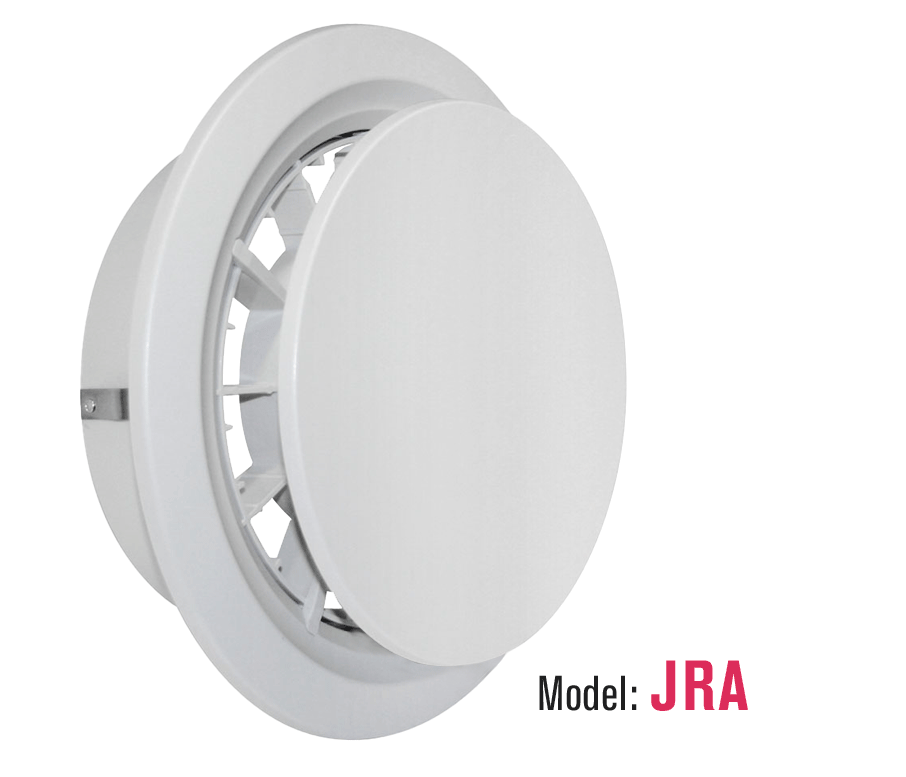

The JRA Adjustable Plastic Grille offers excellent architectural styling for low flow supply and exhaust applications. Designed for ceiling and wall mounting, it provides an integral, readily-accessible airflow adjustment in its intalled position. The high density plastic construction is virtually corrosion-proof and is ideal for use in high humidity indoor installations, such as bathrooms, showers, and dishwashing areas.
Material: ABS Resin
Finish: White
Sizes: 4" & 6"
FEATURES
| Contemporary Design Goes with All Decors |
Available for Standard Duct Sizes |
| Suitable for High Humidity Areas |
Concealed, Spring Clip, Fastening Mechanism* |
| Precision Air Flow Adjustment |
Off-White Finish |
| Durable ABS Plastic |
|
| *Recommended use of (3) No.8 screws through body into duct wall to ensure positive connection in ceiling application.
|
|
TYPICAL APPLICATIONS
| Fresh Air Intake |
For Use With Ducted and Unducted Systems |
| Ventilation for Interior Locations |
Bathroom Exhaust & Supply Applications |
| Residential, Commercial, and Marine Applications |
|

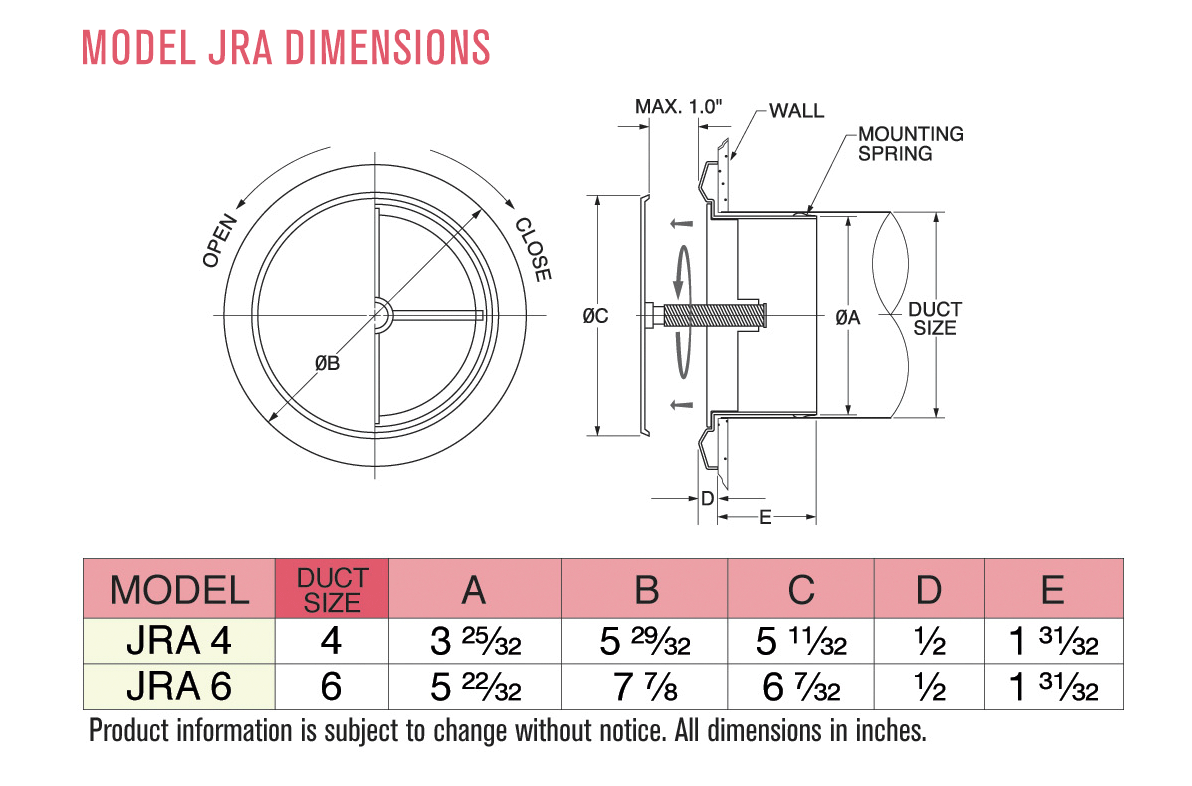

DIMENSIONS
DOWNLOAD
