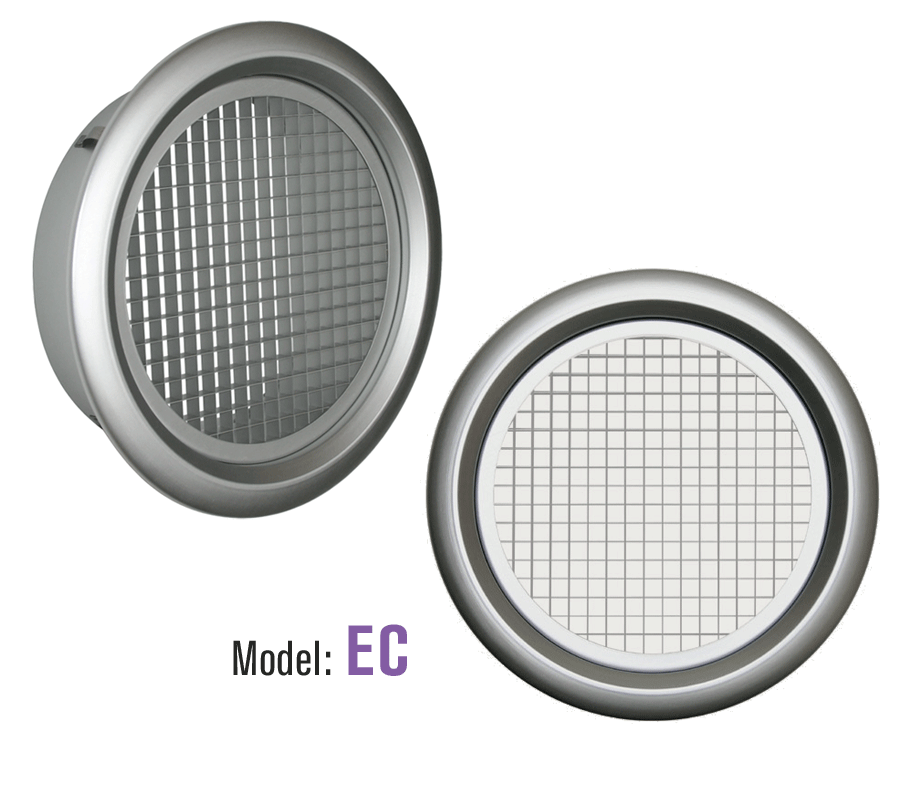

Model EC
Round Lattice Grille
Model EC Round Lattice Grille is designed for use in residential and commercial applications. The model EC can be used for exhaust, return or supply applications with a low air resistance and low noise levels, and can be installed on a wall or mounted on ductwork with spring clip. The model EC is constructed of a heavy gauge aluminum frame with 1/2" x 1/2" thin aluminum lattice. The standard finish is clear anodized finish.
Material: Heavy-Gauge Aluminum
Finish: Clear Anodized (Custom Colors Available)
Sizes: 8" 10" 12"
Optional Screen (EC-N): 10 Mesh
FEATURES
| Made from Machined Anodized Aluminum |
| Available for Standard Duct Sizes |

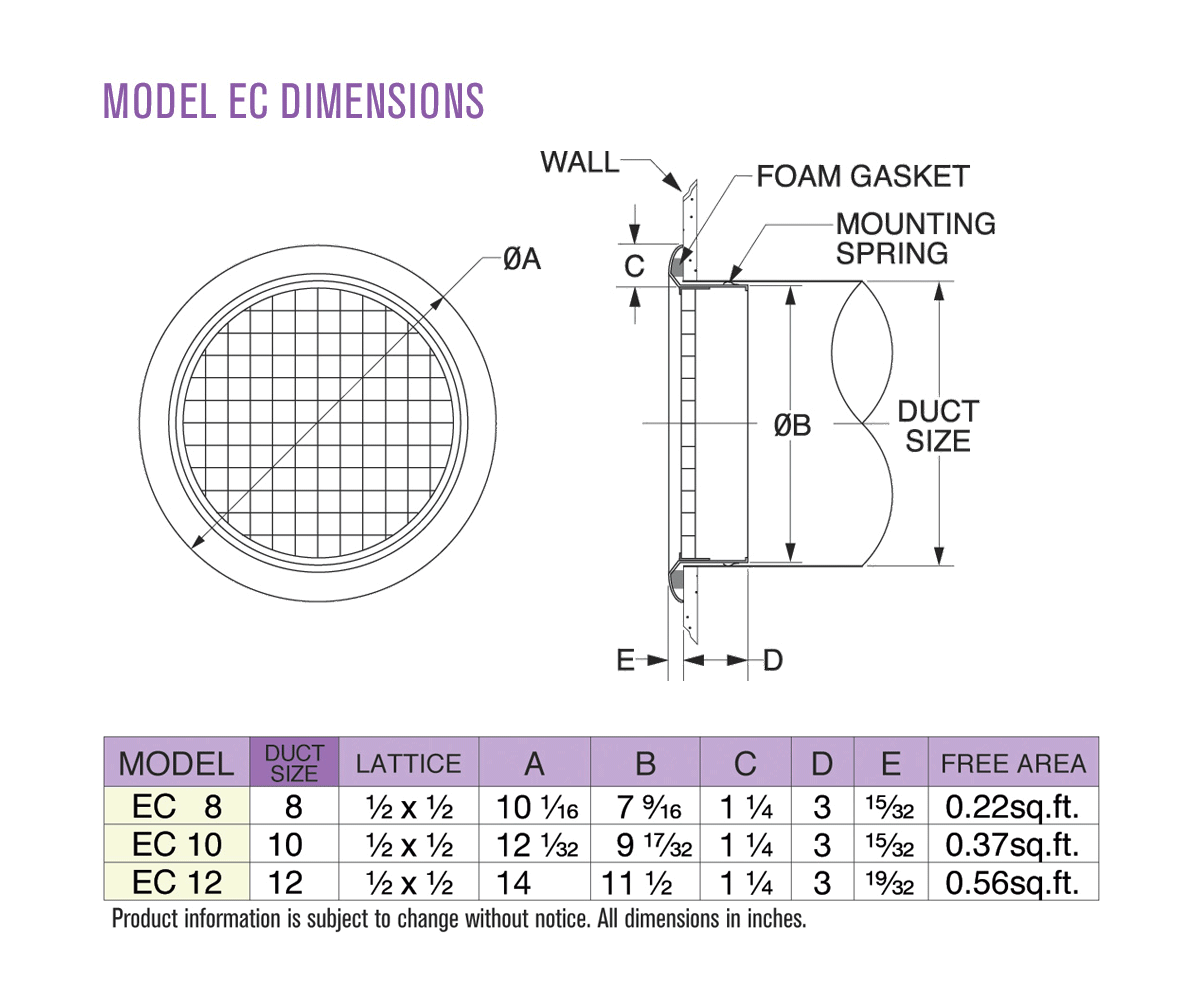

DIMENSIONS
DOWNLOAD
| Catalog |
| Submittal Sheet Inch / Metric |
| High Resolution Picture |
