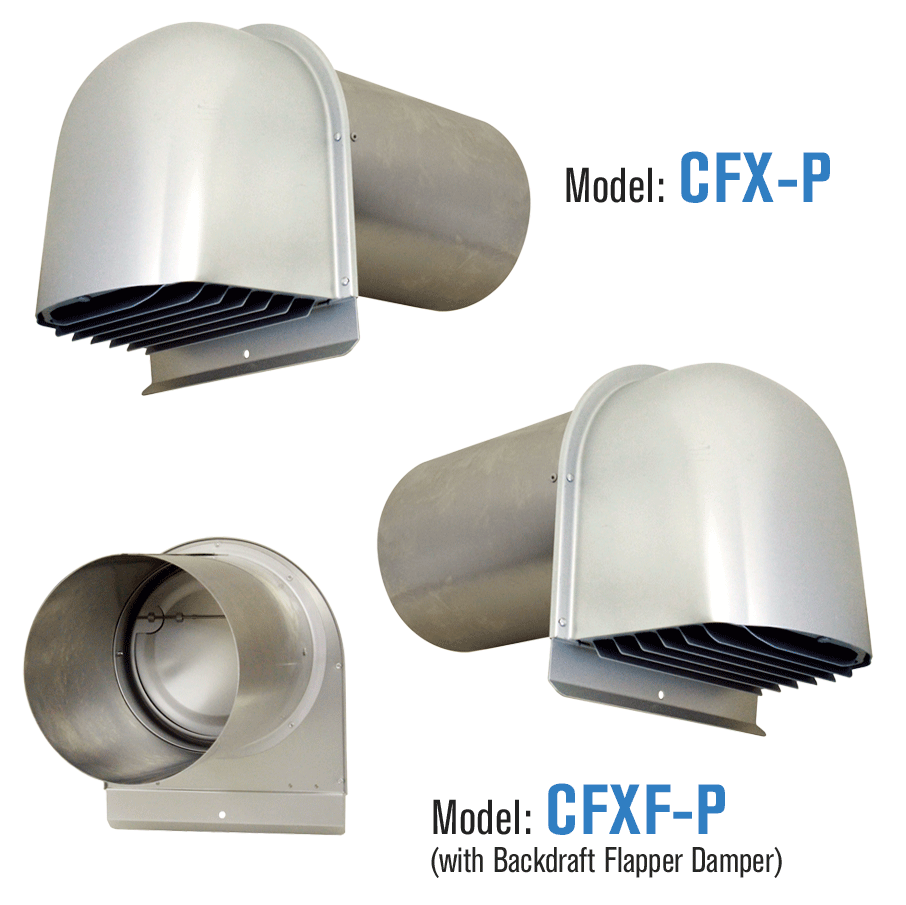

Model CFX-P & CFXF-P
Dryer Vent with Heavy Duty 8 1/2" Long Pipe
Our dryer vents CFX is now available with a rigid, heavy-duty 8 1/2" long aluminum pipe attached to it. The round pipe is ideal for through-the-wall mounting, and is available in two sizes, 4" and 6". The CFXF-P Dryer Vents come standard with a flapper damper, preventing outside air from back-drafting into the house through the dryer. The heavy-gauge anodized aluminum construction is corrosion-resistant for durability.
*Note
No louver manufacturer warrants their louver to prevent water penetration under all possible circumstances of wind and rain.
Do not use this product in areas exposed to oil fumes, such as kitchen exhaust systems.
Material: Aluminum
Finish: Anodized (Custom Colors Available)
Sizes: 4" & 6"

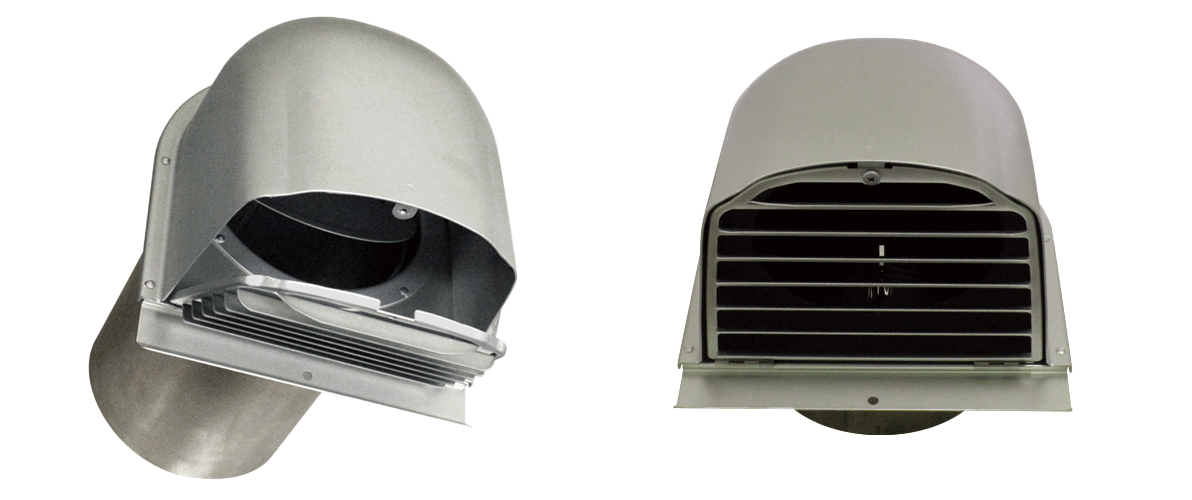

FEATURES
| Grille can be opened outwards for easy maintenance and cleaning. | Long hood design provides excellent water protection. |
| Standard with Backdraft Flapper Damper (CFXF-P). | Large Free Area Reduces Clogging. |

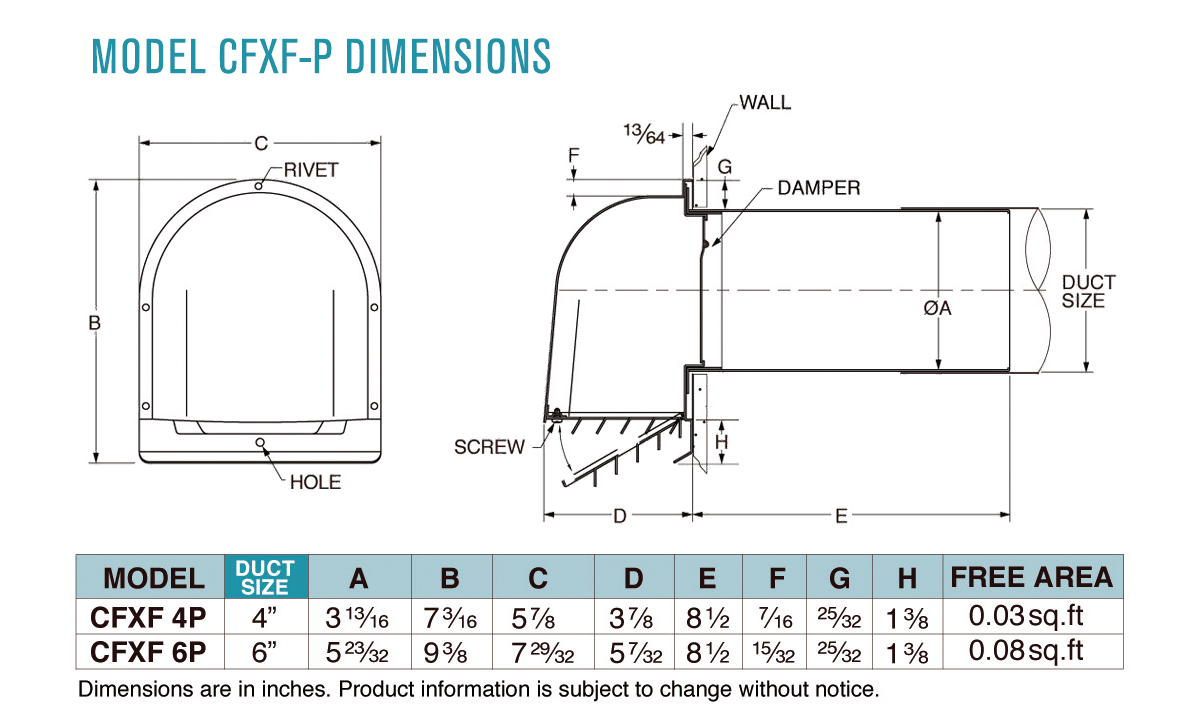

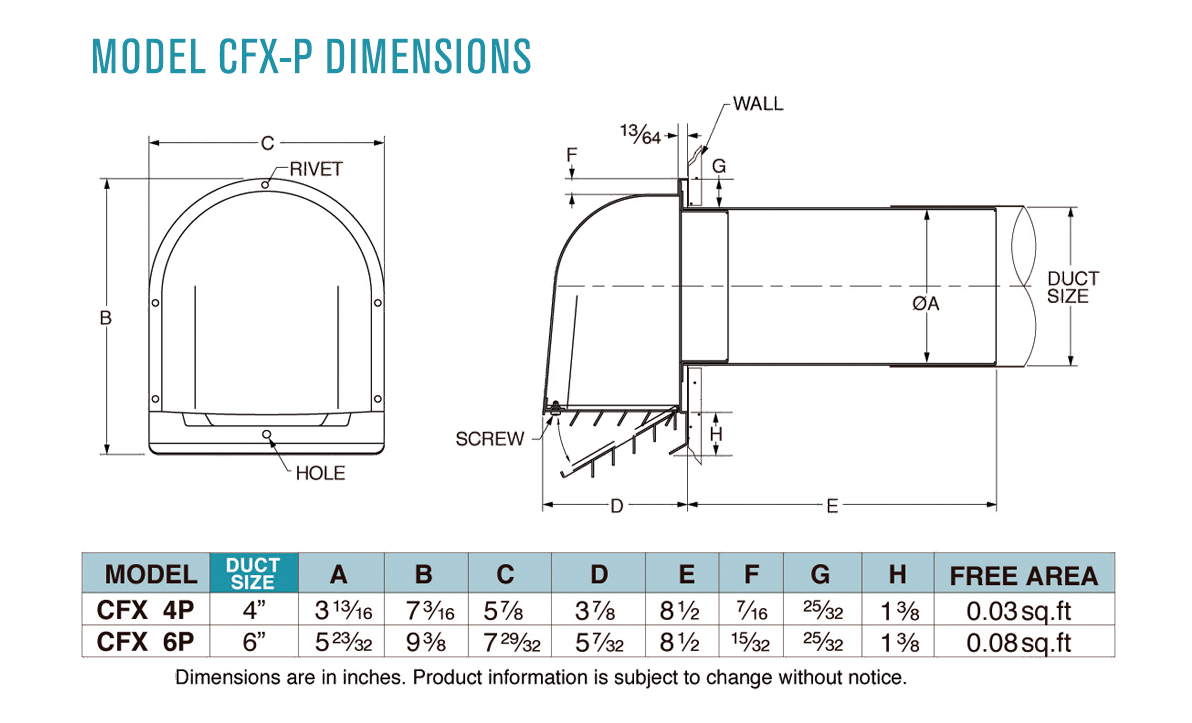

DIMENSIONS
DOWNLOAD
| Catalog |
| Submittal Sheet CFX-P / CFXF-P |
| Installation Instruction |
| High Resolution Picture CFX-P / CFXF-P |
