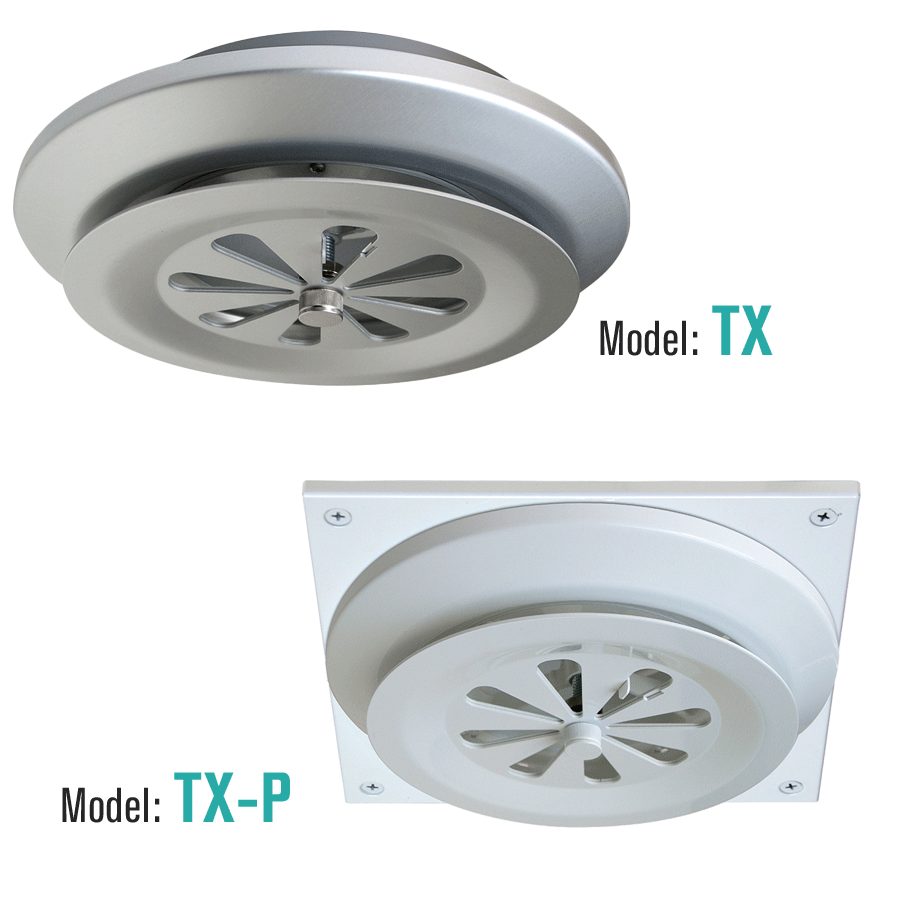

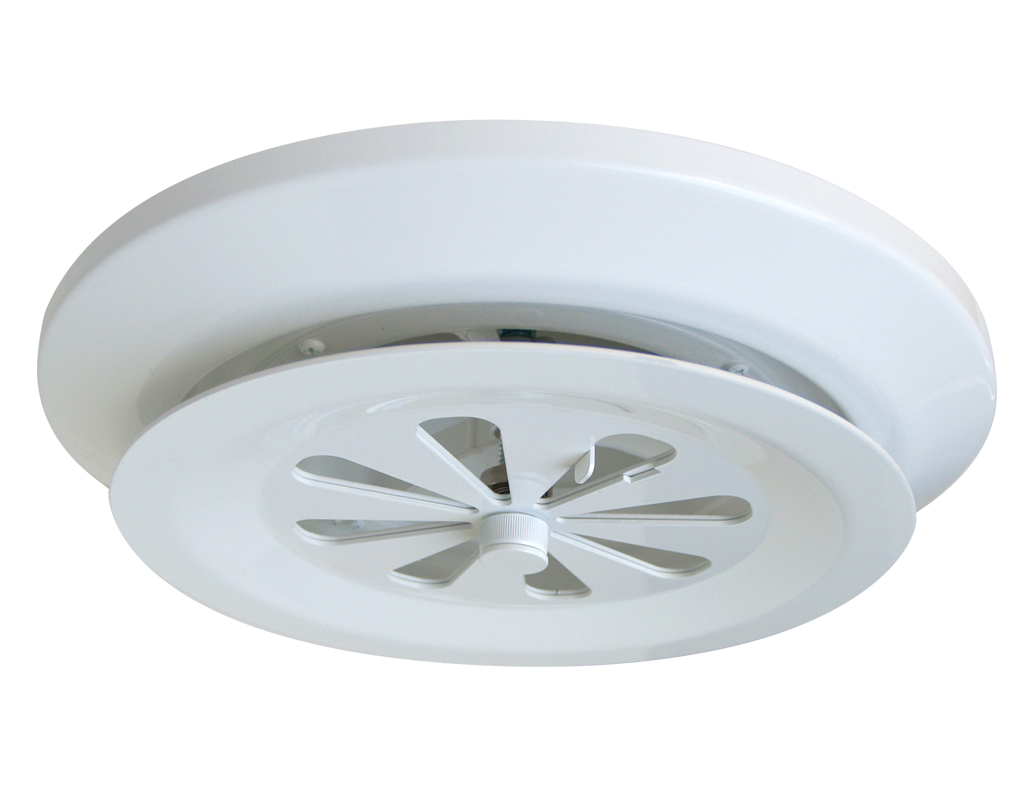

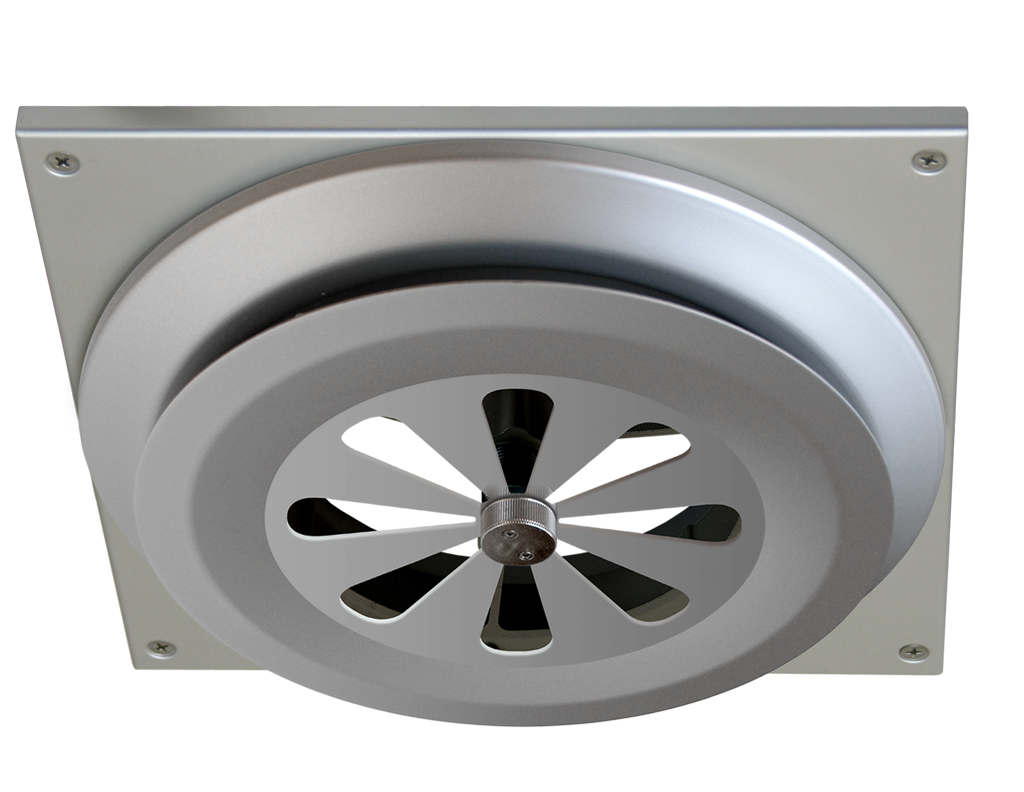

The MINI Ceiling Diffuser is now equipped with an innovative vertical air discharge shutter. Combine with horizontal air flow control center plate, the model TX allows the user to achieve variable air flow patterns. Stylish low silhouette, unobtrusive profile with exceptionally high quality aluminum construction, extremely versatile TX and TX-P MINI Diffusers are excellent choice for many residential or light commercial applications.

Material: Aluminum
Finish: White Painted or Clear Anodized (Custom Colors Available)
Sizes: 4", 6", 8"

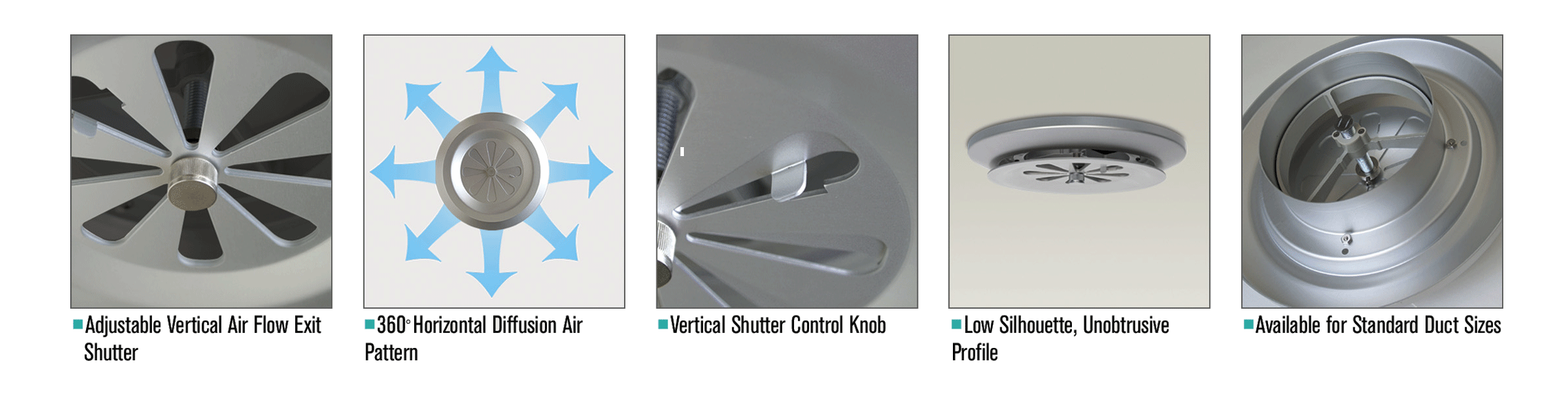

FEATURES

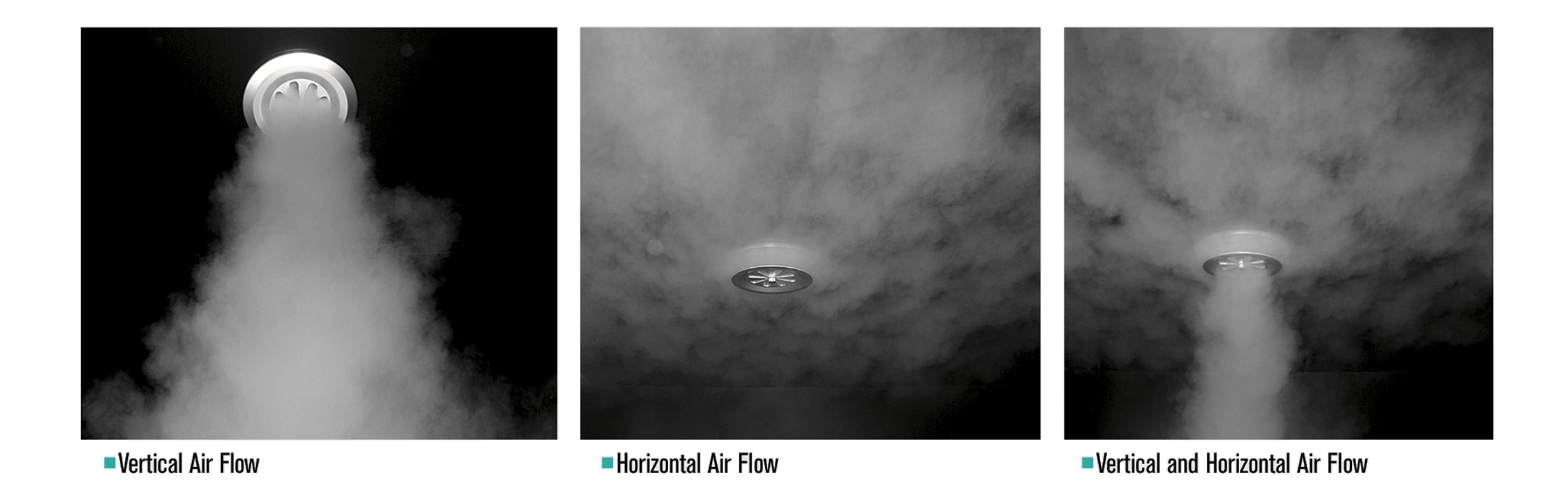

AIR FLOW PATTERN

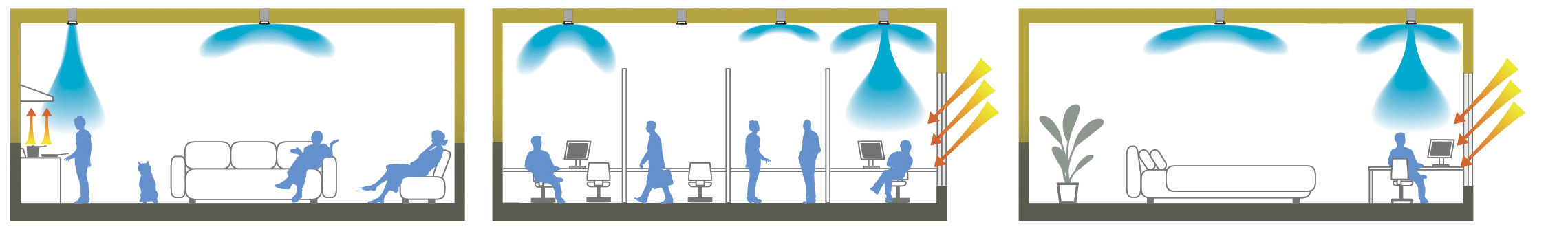

APPLICATIONS

The model TX MINI Diffuser is an ideal product for residential HVAC solution, however, because of its versatility, the TX will also fit perfectly for many other applications such as hospitals, hotels, schools, offices, retail stores and etc.

Offices	Library	Homes
Condominiums	Retail Stores	Ships
Apartments	Hotels	Restautants

FINISH

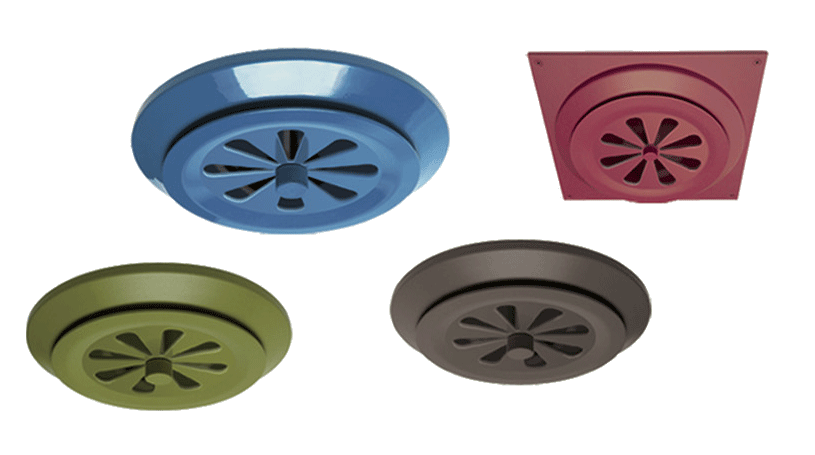

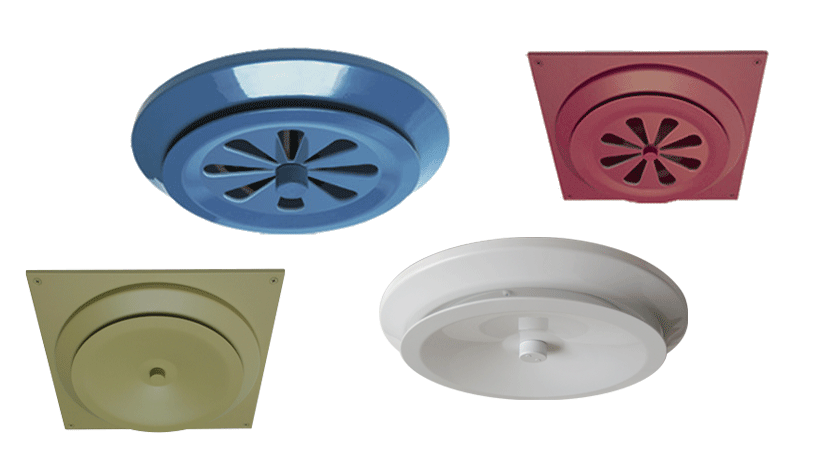

The Seiho TX MINI Diffusers can be custom color matched to enhance the total decor of your room. Can match almost any color sample provided. Please contact our sales department for assistance and detailed ordering information.

The standard finish is clear anodized or white. Powder coatings in a variety of colors are available upon request at a nominal charge. Please contact our sales department for assistance and detailed ordering information.

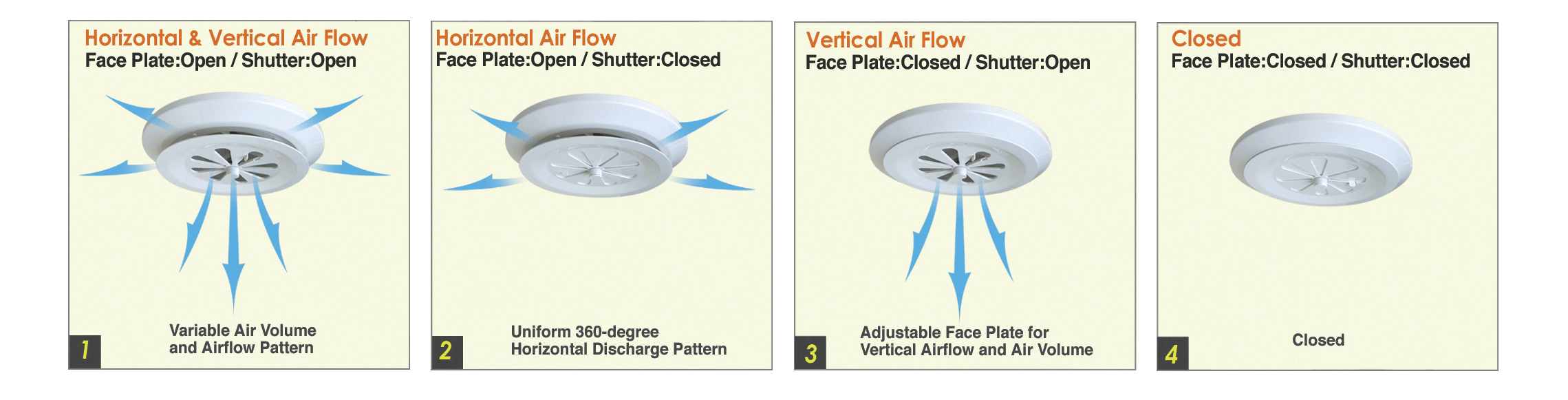

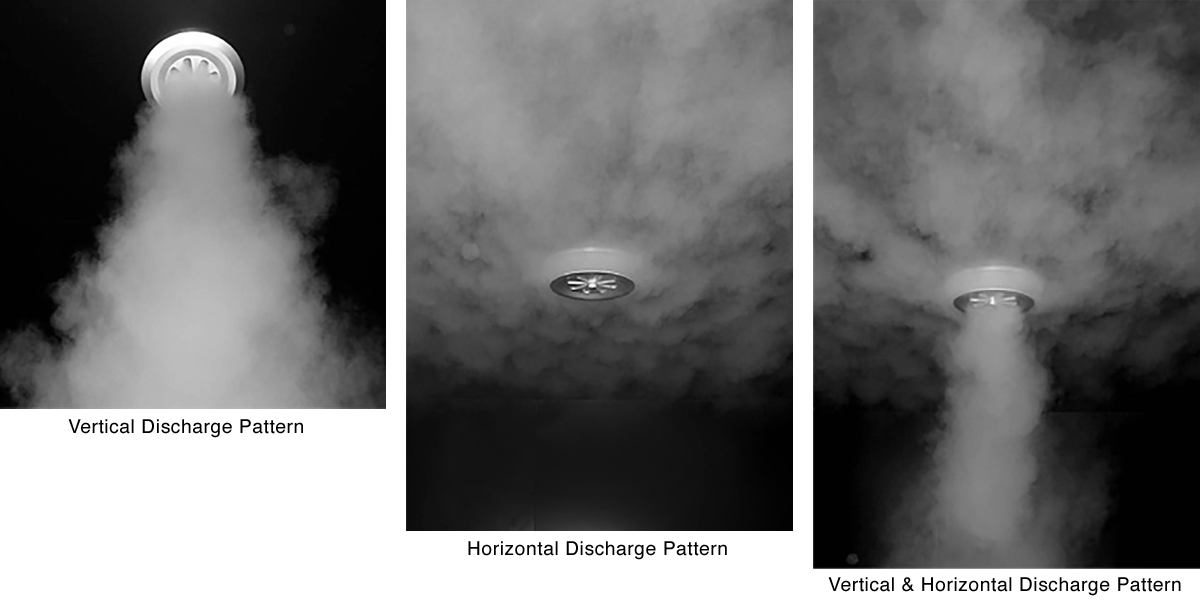

AIRFLOW PATTERNS

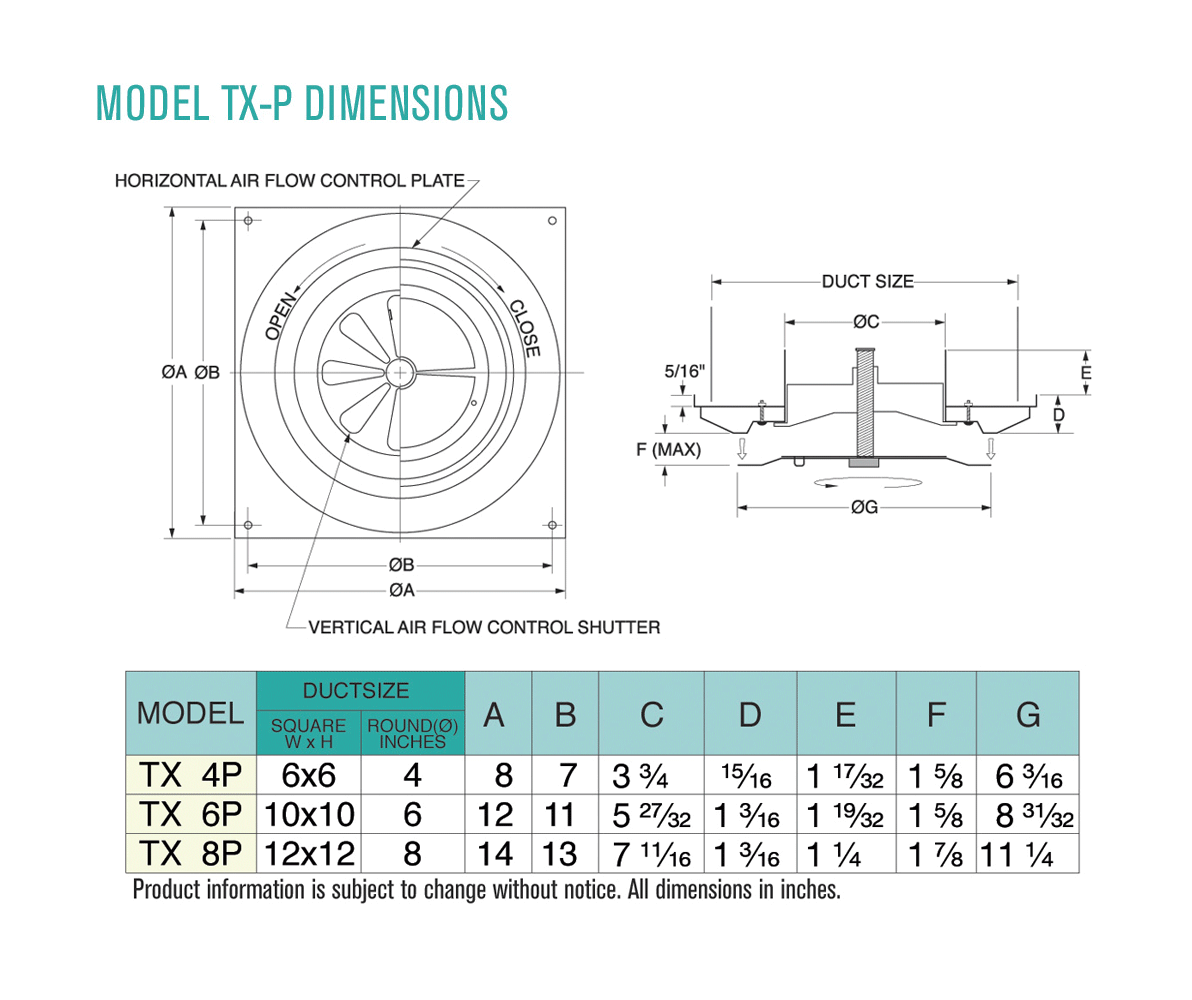

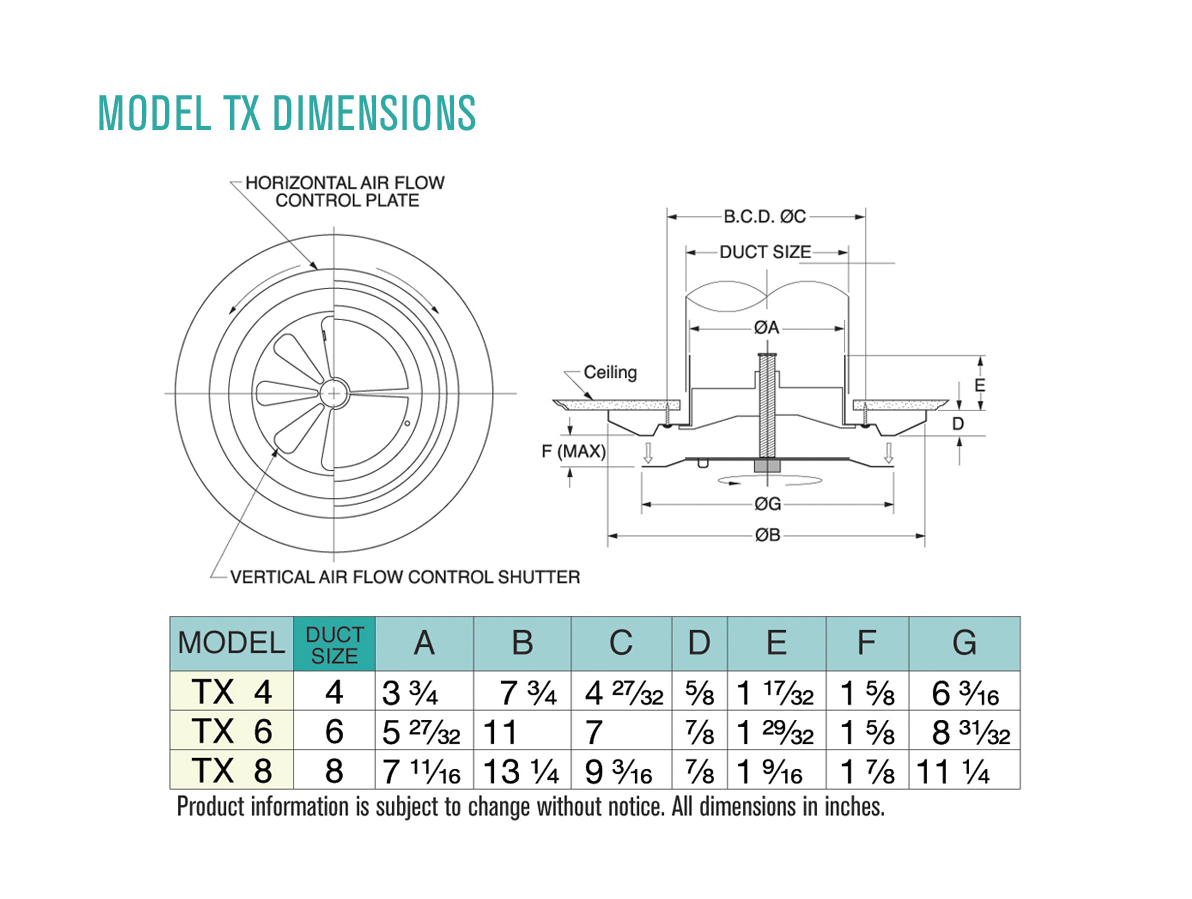

DIMENSIONS

DOWNLOAD

Catalog

Submittal Sheet  TX  /  TX (Metric) /  TX-P /  TX-P (Metric)

Performance Data  Inch /  Metric

High Resolution Picture  TX /  TX-P
