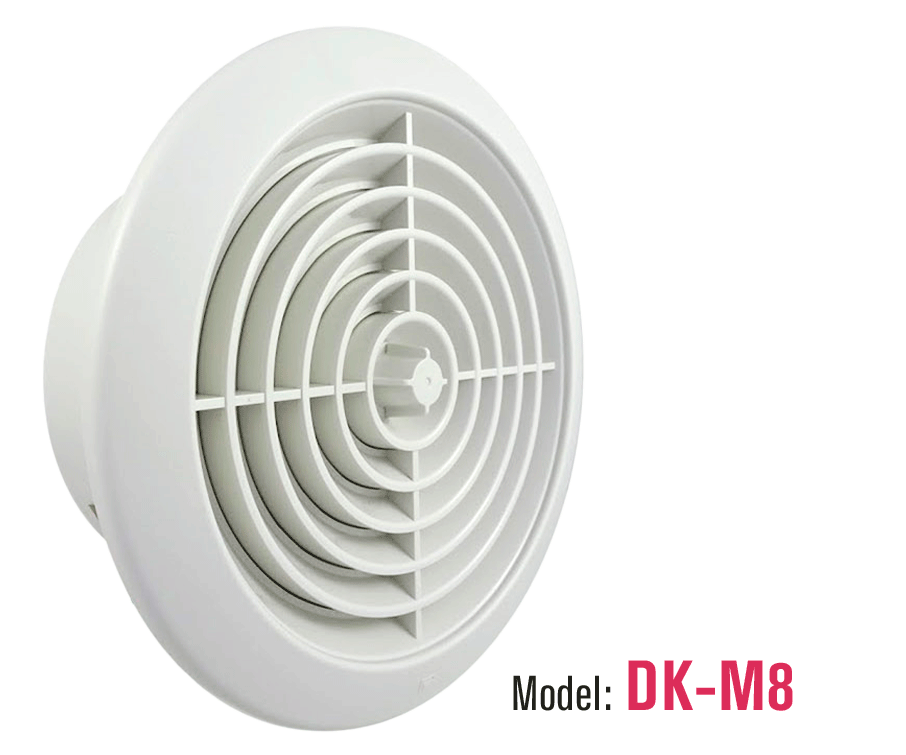

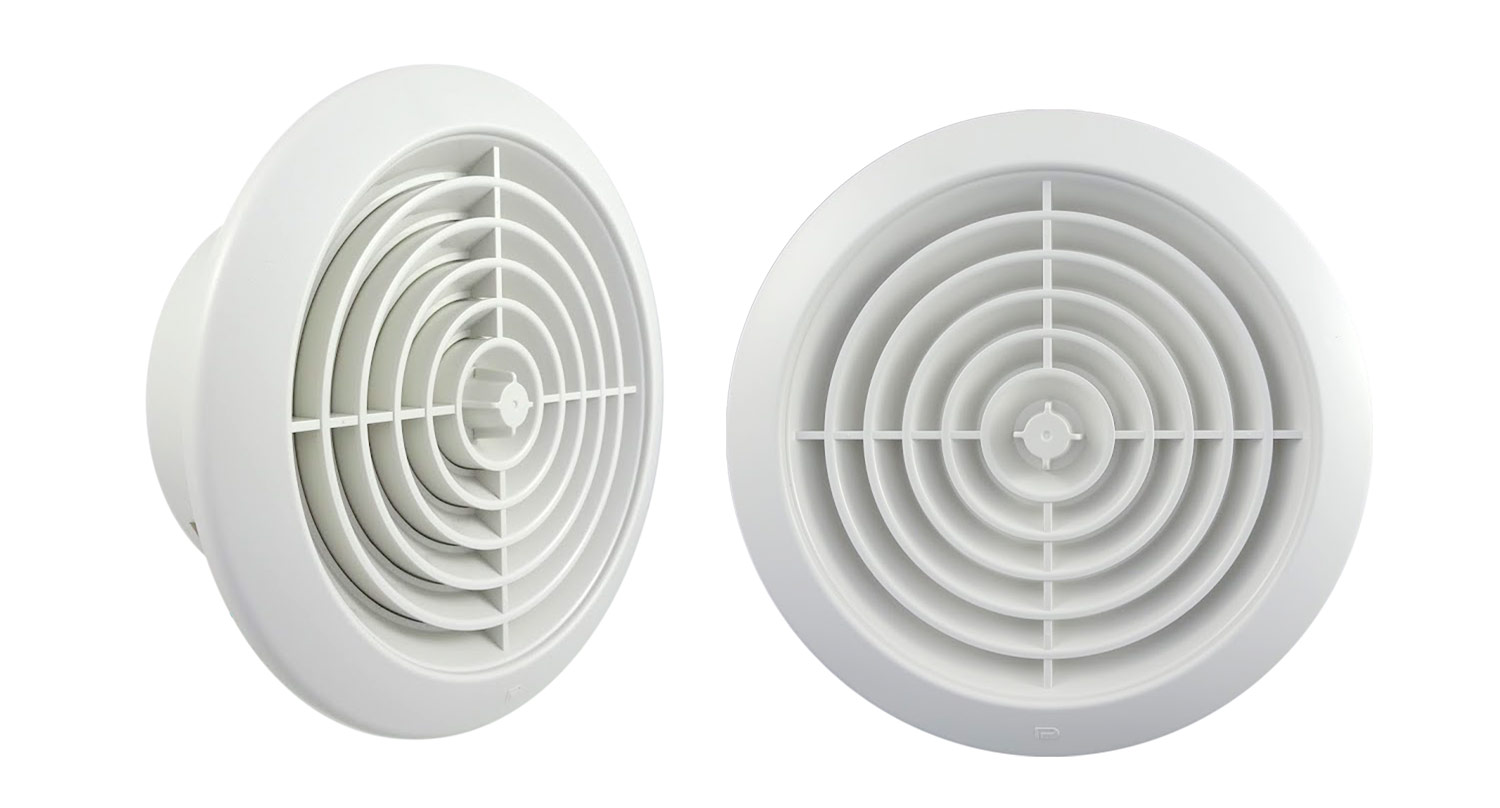

The DK-M8 Adjustable Plastic Grille offers excellent architectural styling for fresh air intake and exhaust applications. Standard with volume control damper, it provides an integral, readily-accessible airflow adjustment in its installed position. The high density plastic construction is virtually corrosion-proof and is suitable for use in high humidity indoor installations, such as bathrooms, showers, and dishwashing areas.
Material: ABS Resin
Finish: White
Size: 3", 4", 6"
FEATURES
| Contemporary Design Goes with All Decors |
Available for Standard Duct Sizes |
| Suitable for High Humidity Areas |
Concealed, Spring Clip, Fastening Mechanism* |
| Precision Air Flow Adjustment |
Off-White Finish |
| Durable ABS Plastic |
|
| *Recommended use of (3) No.8 screws through body into duct wall to ensure positive connection in ceiling application.
|
|

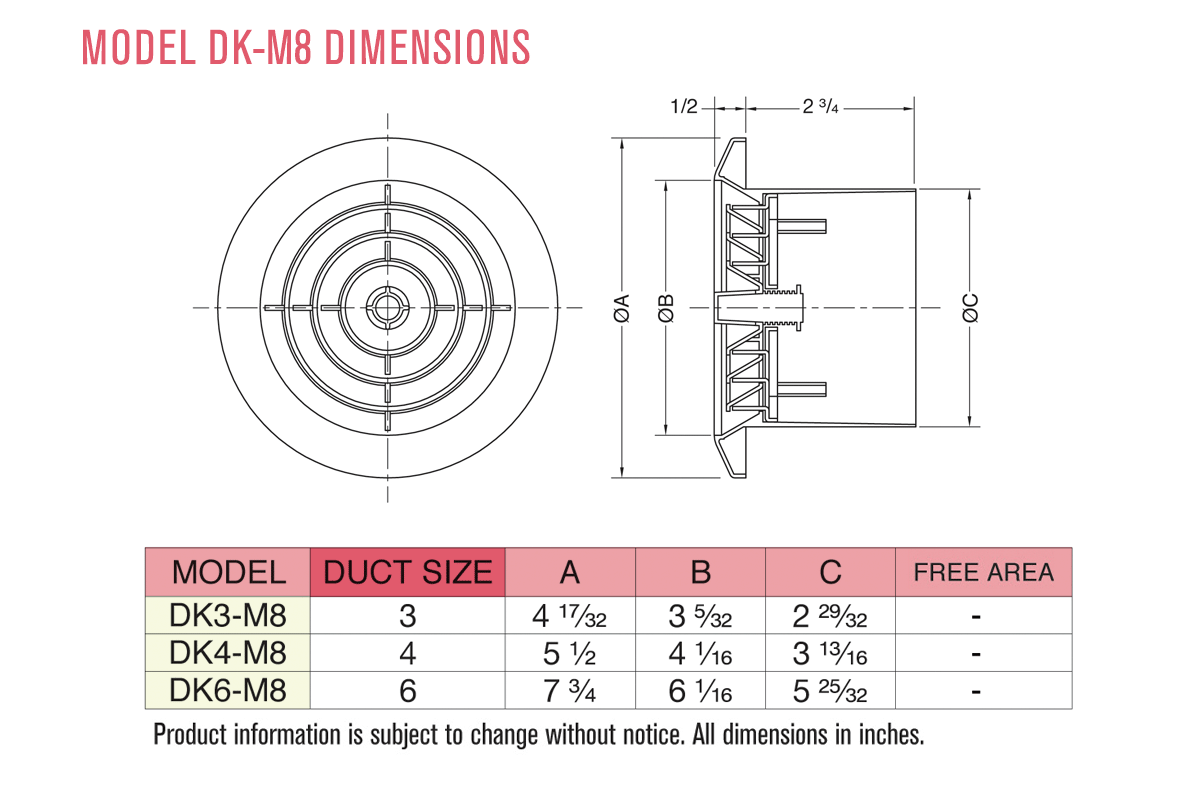

DIMENSIONS
DOWNLOAD
