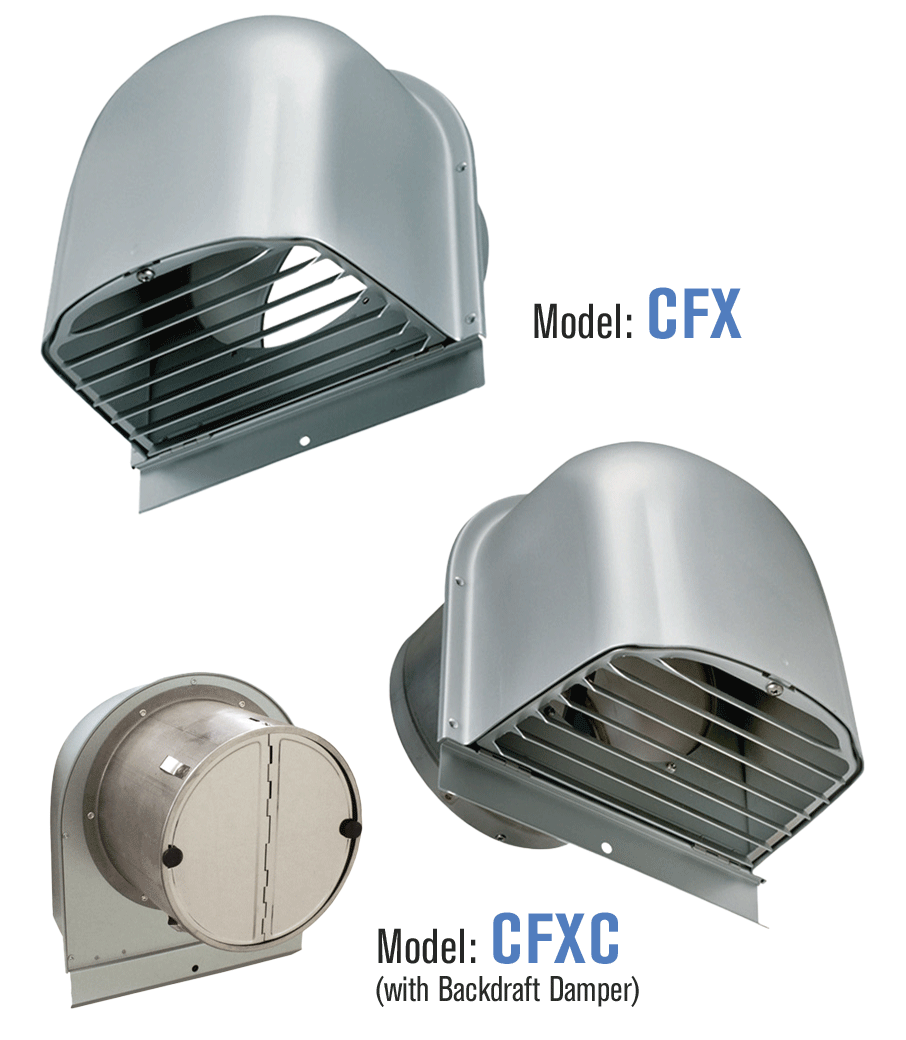

Model CFX & CFXC
Dryer Vents

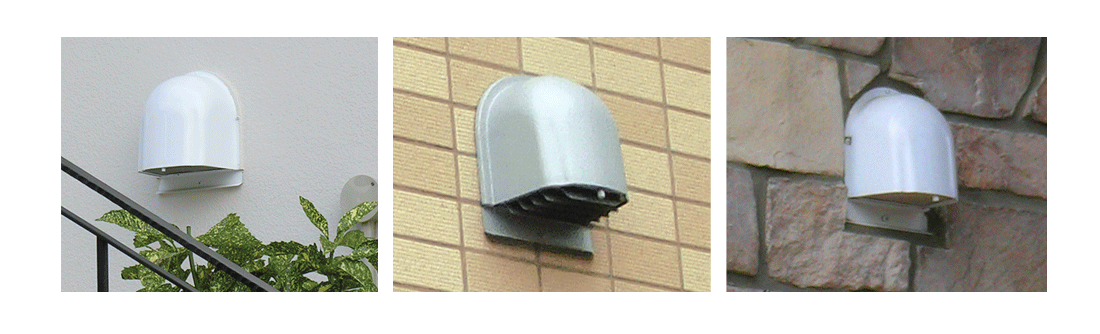

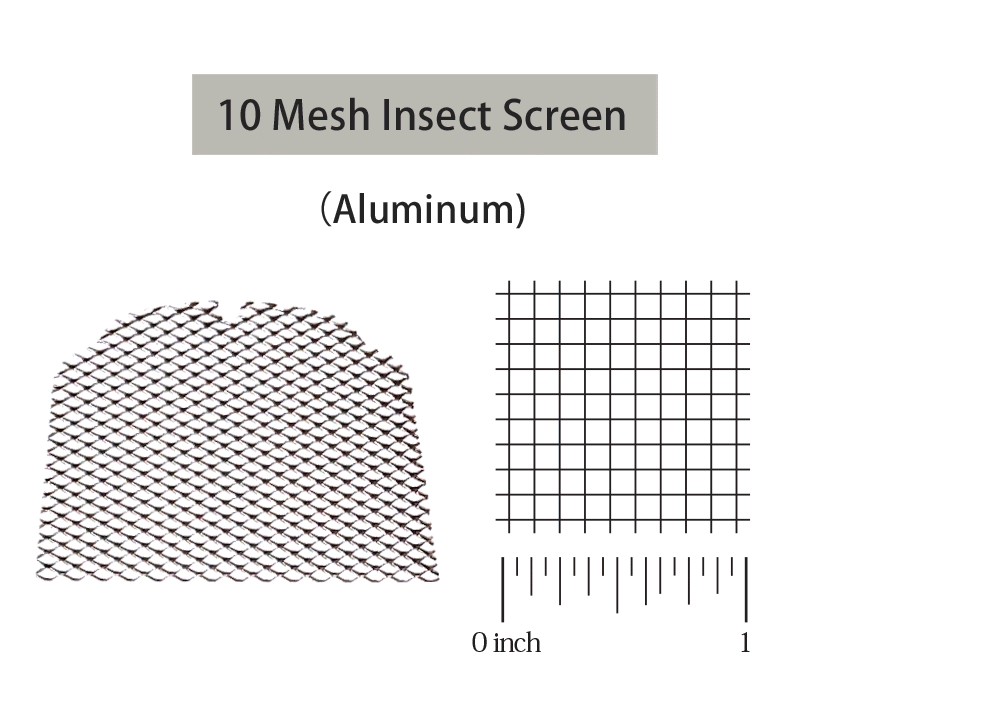

The CFX hooded vent cap is similar to Model SFX, except the horizontal louvers are facing down. The benefit with the louver plate is that it can be easily opened for regular cleaning. This model is ideal for exteriors where protection from the elements is necessary and not already carried out by the building design. Insect screen (CFX-N) and spring loaded backdraft damper (CFXC) are optional.
*Note
No louver manufacturer warrants their louver to prevent water penetration under all possible circumstances of wind and rain.
Material: Aluminum
Finish: Anodized (Custom Colors Available)
Sizes:
CFX: 3", 4", 5", 6", 7", 8", 10", 12"
CFXC: 4" & 6"

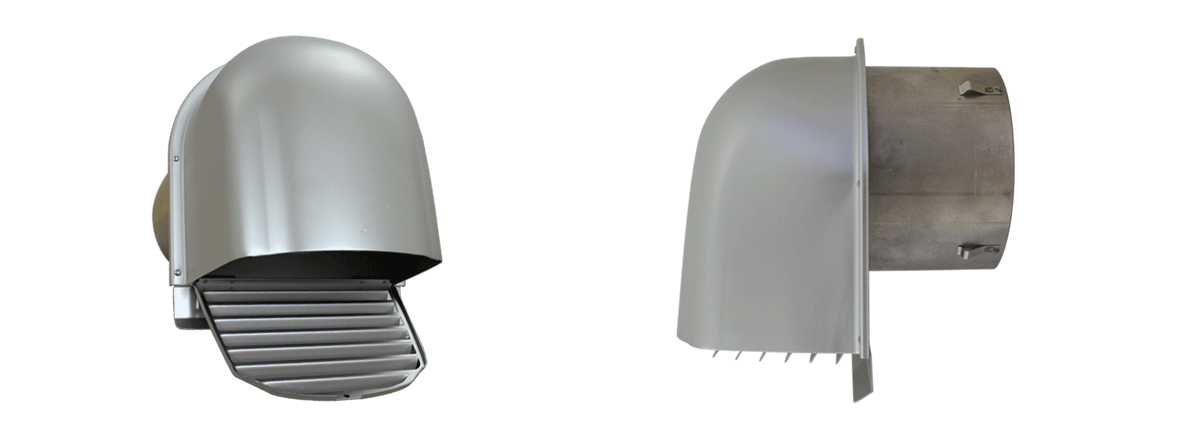

FEATURES
| Grille can be opened outwards for easy maintenance and cleaning. | Long hood design provides excellent water protection. |
| Standard with Backdraft Damper (CFXC). | Large Free Area Reduces Clogging. |
| All Aluminum Construction. |

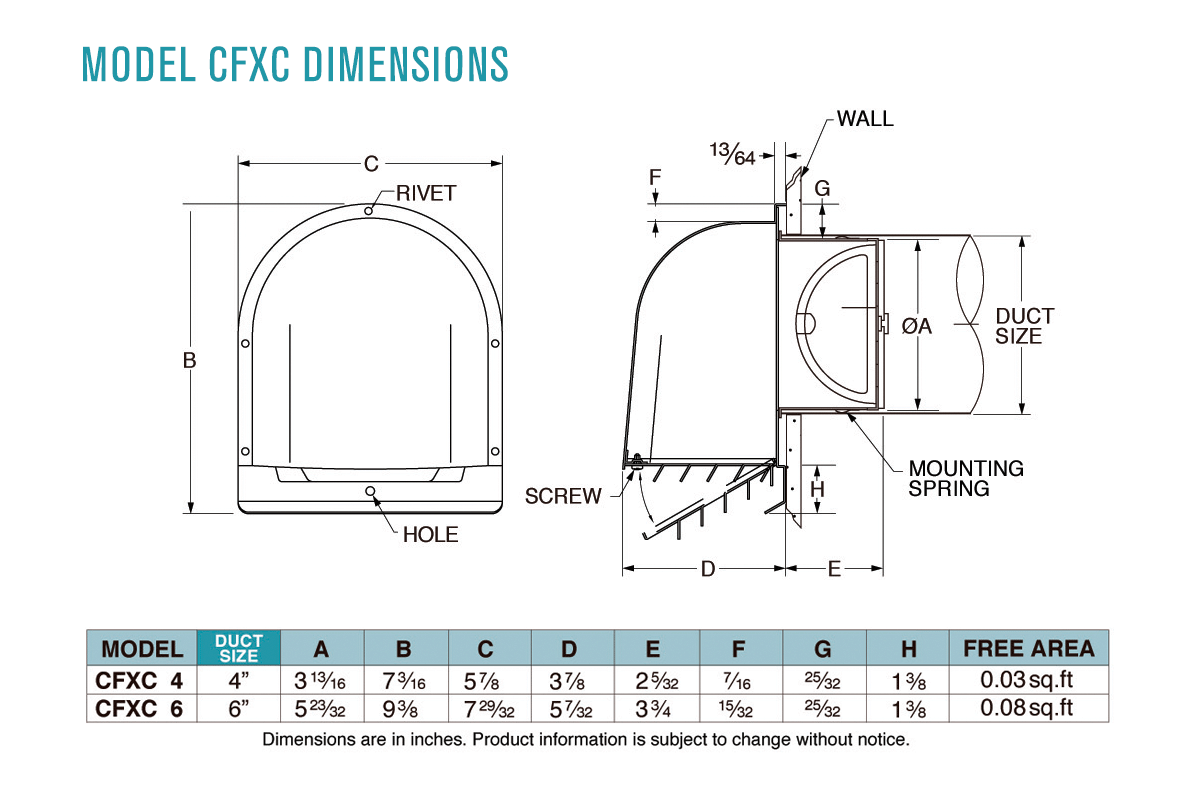

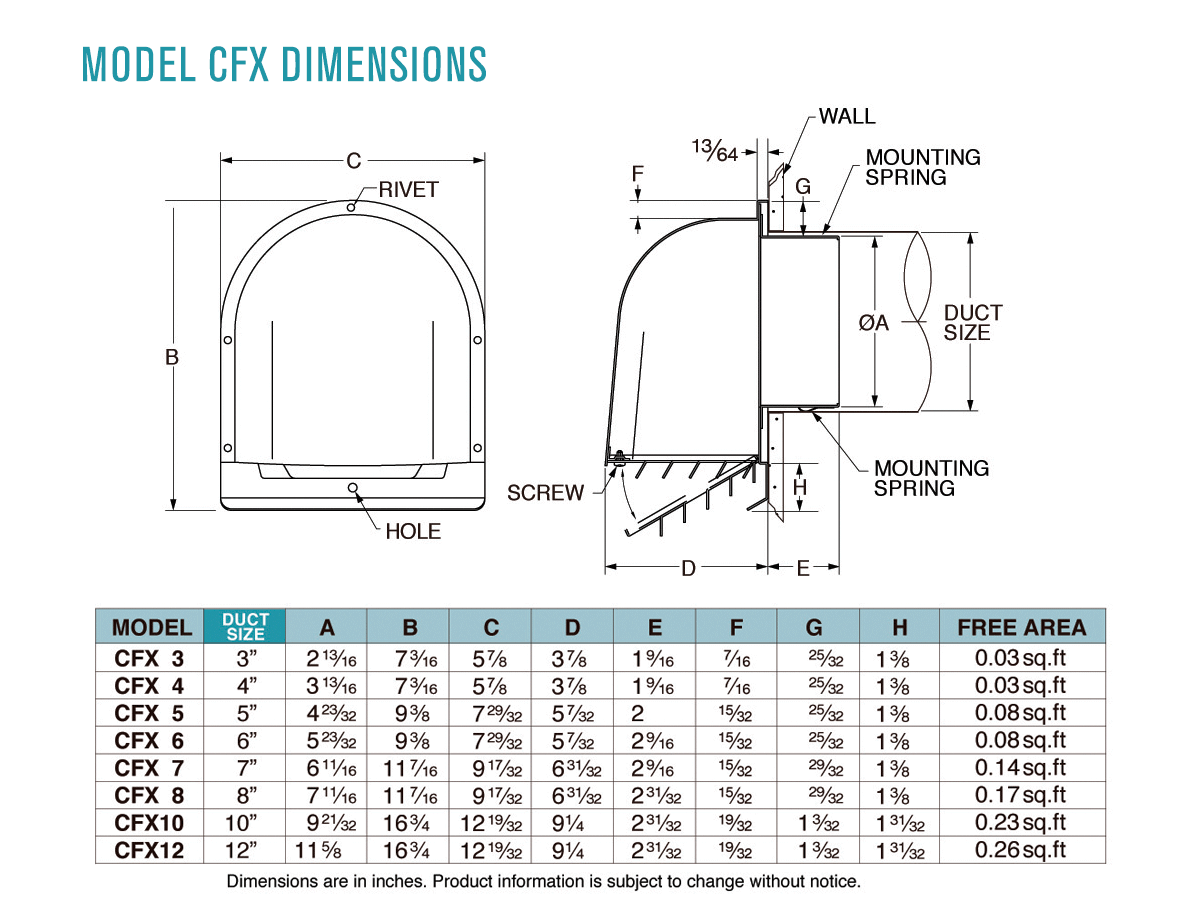

DIMENSIONS
DOWNLOAD
| Catalog |
| Submittal Sheet CFX / CFXC |
| Installation Instruction |
| High Resolution Picture CFX / CFXC |
